Straight PCB solder

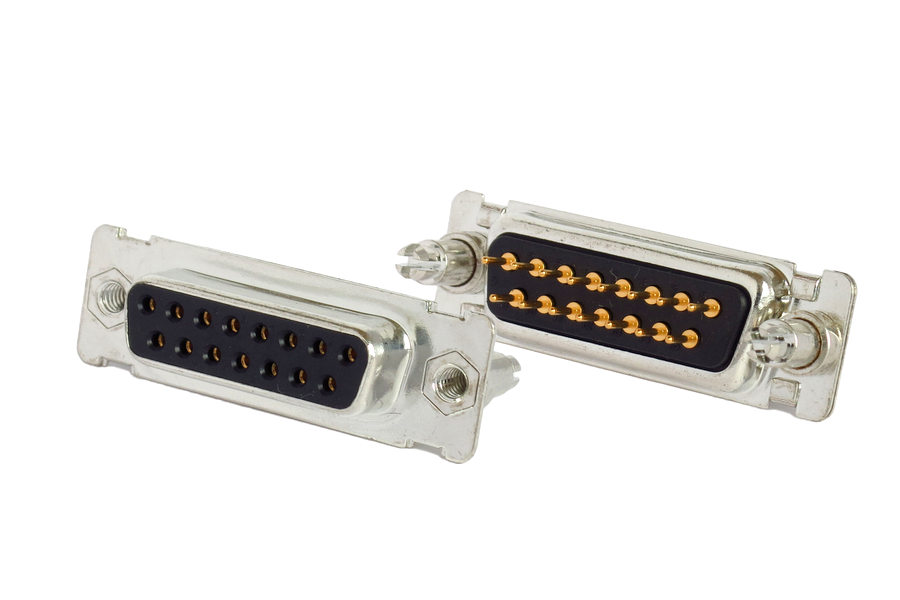

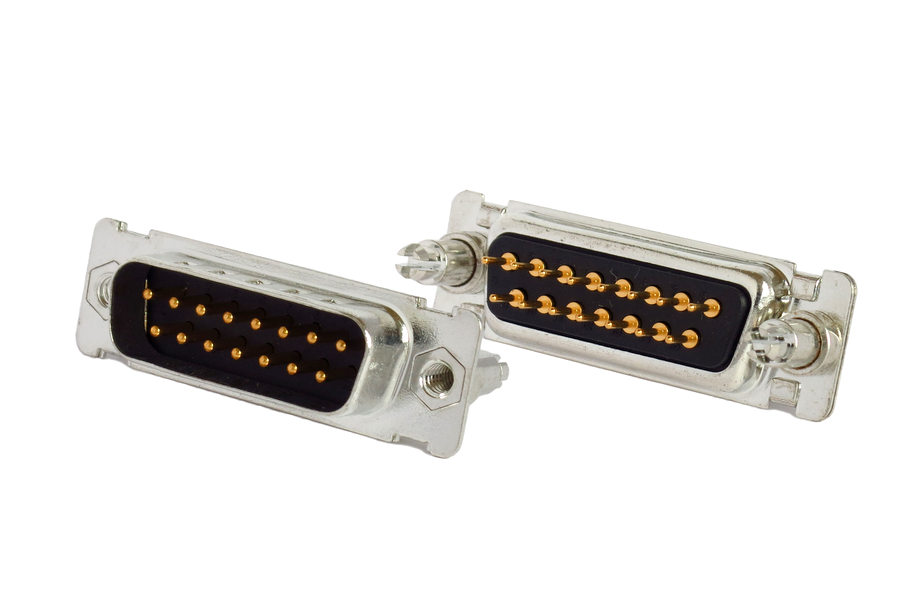

Male (click to enlarge)

Female (click to enlarge)

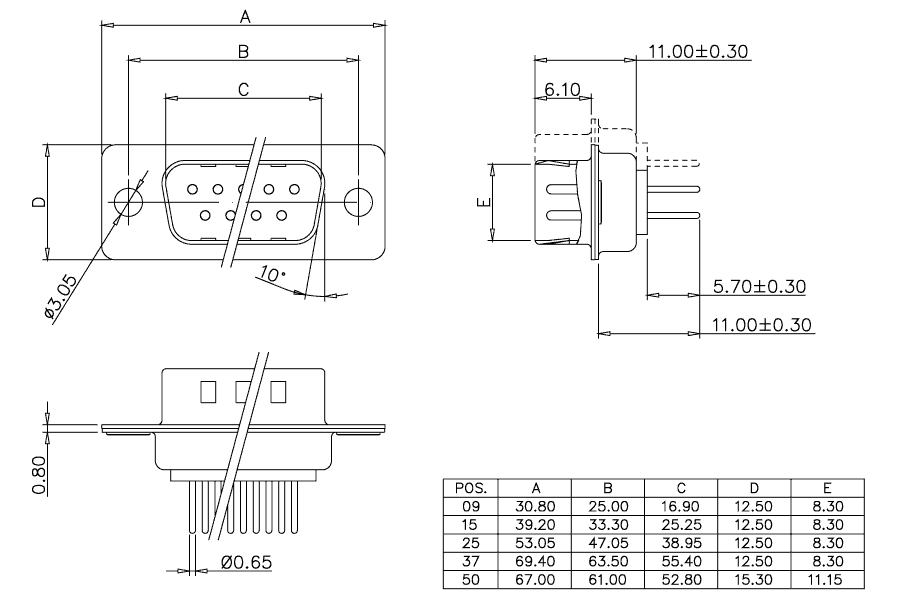

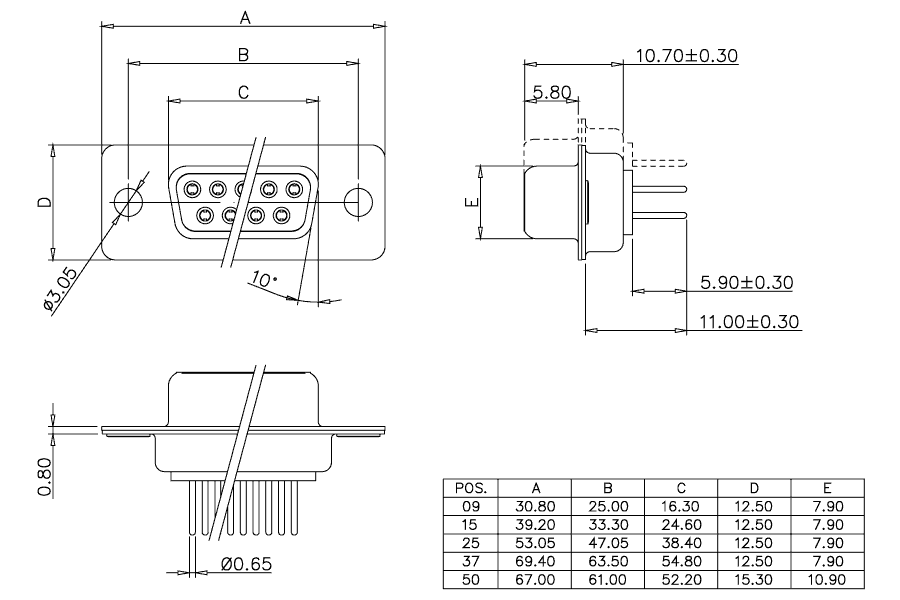

Drawing

Male (click to enlarge)

Female (click to enlarge)

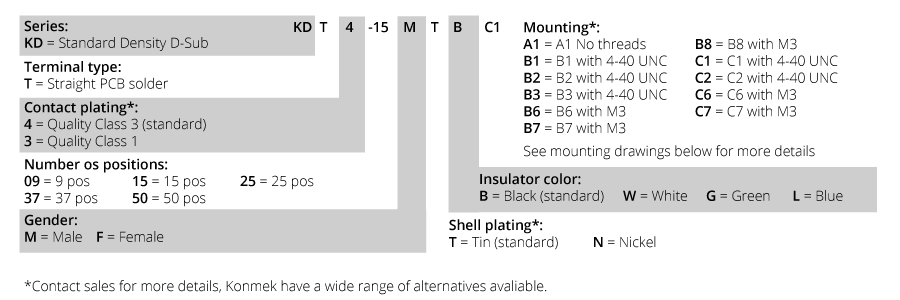

Part Number Code

Part Number Code (click to enlarge)

Mounting

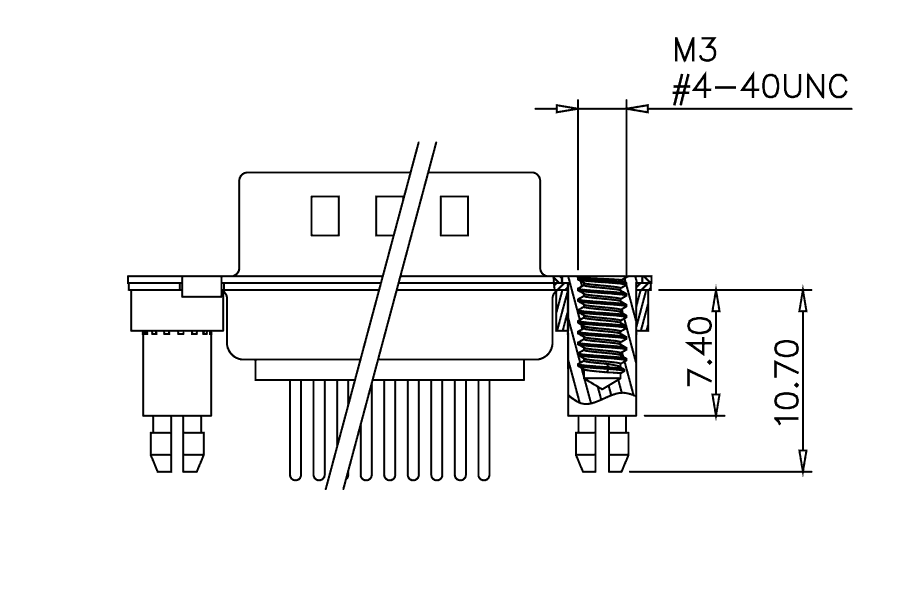

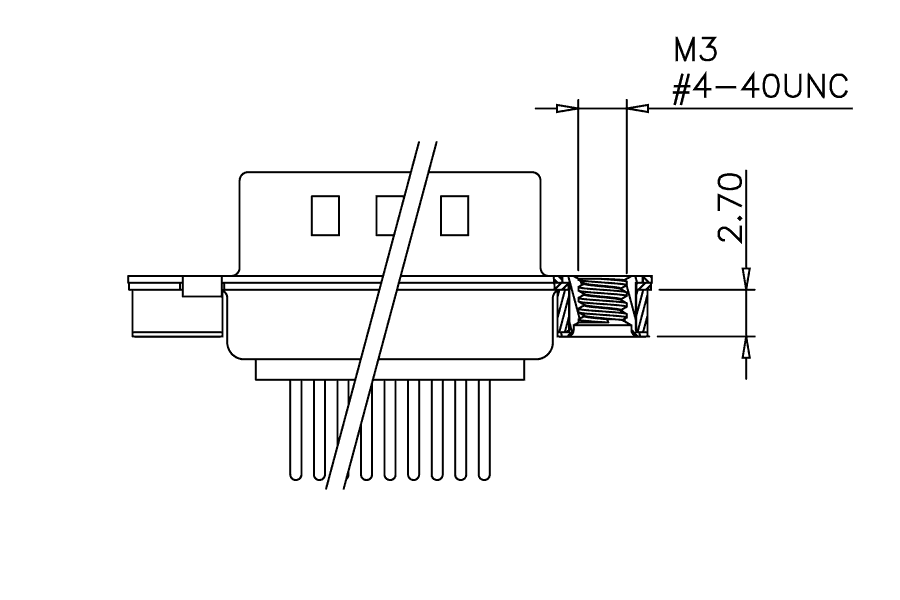

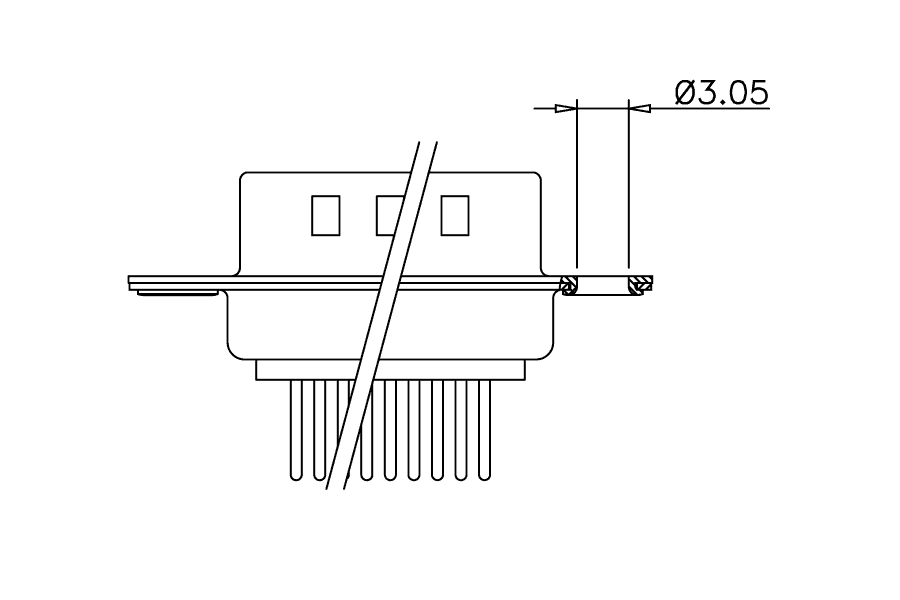

A1 (click to enlarge)

B1/B6 (click to enlarge)

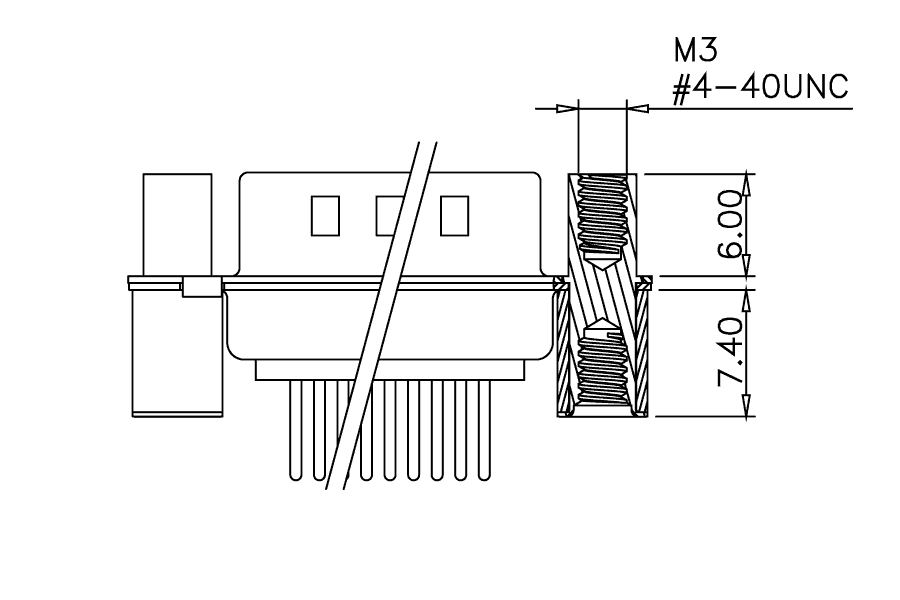

B2/B7 (click to enlarge)

B3/B8 (click to enlarge)

C1/C6 (click to enlarge)

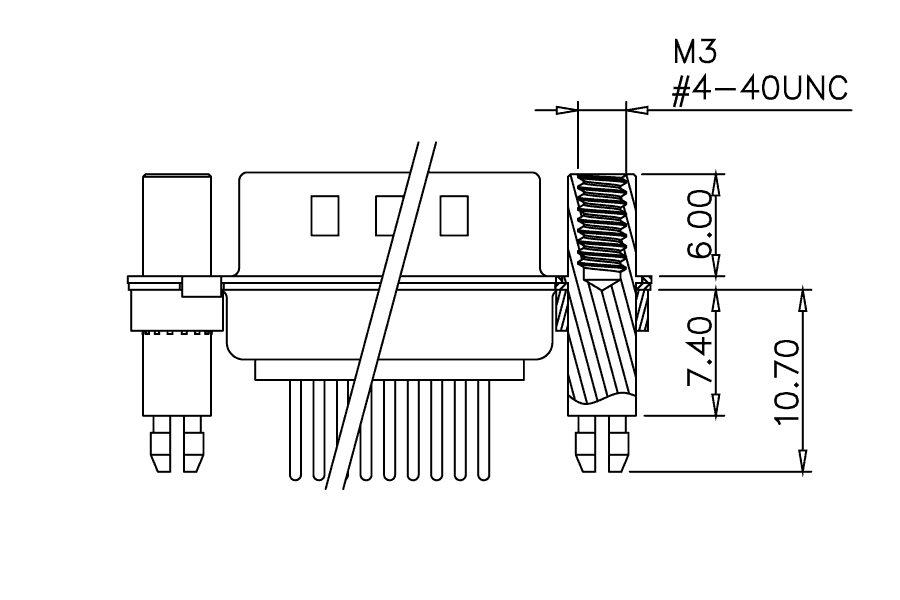

C2/C7 (click to enlarge)

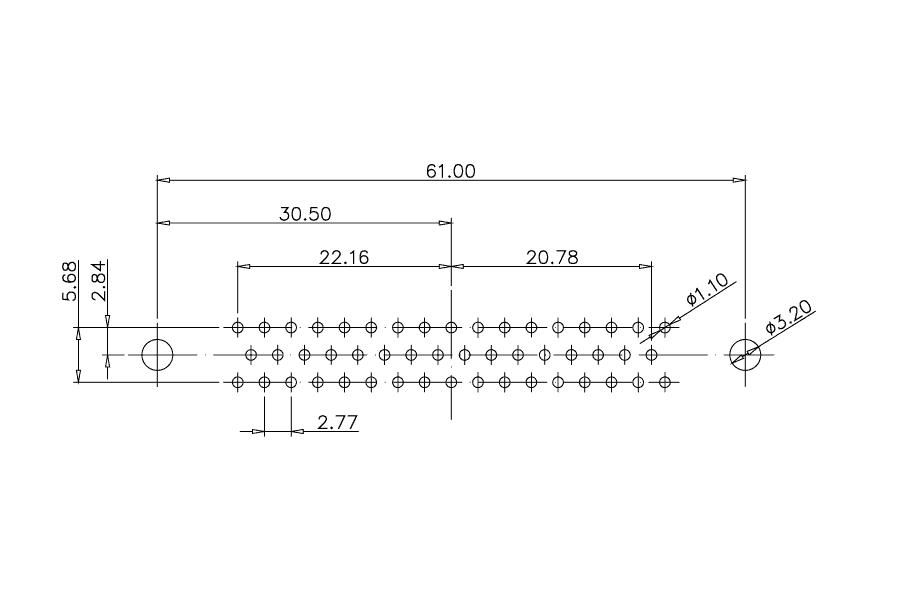

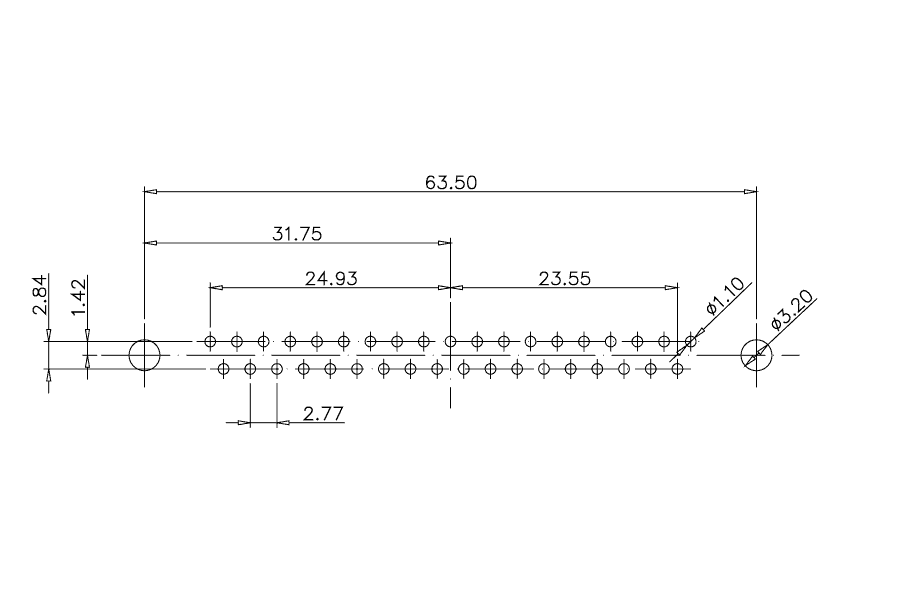

PCB Layout

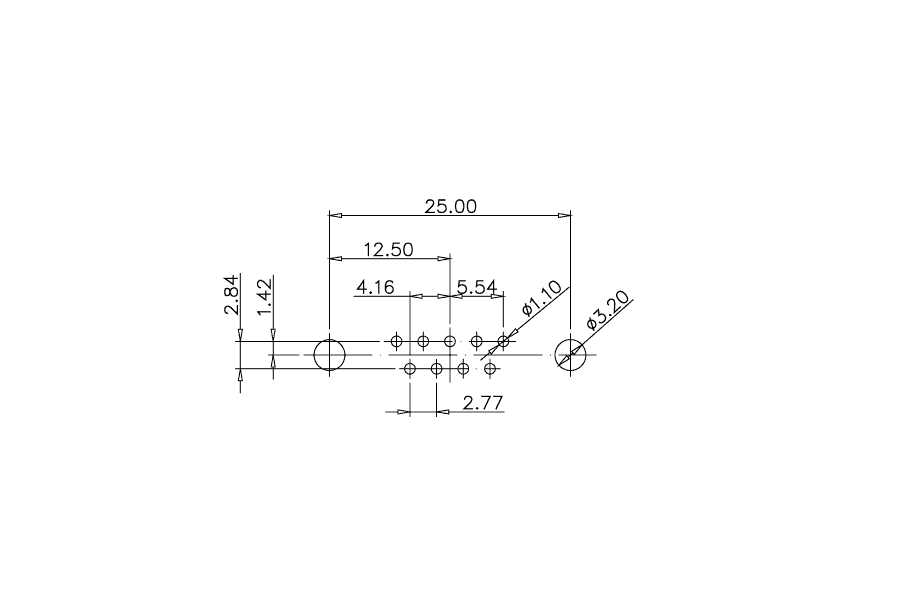

9 pos (click to enlarge)

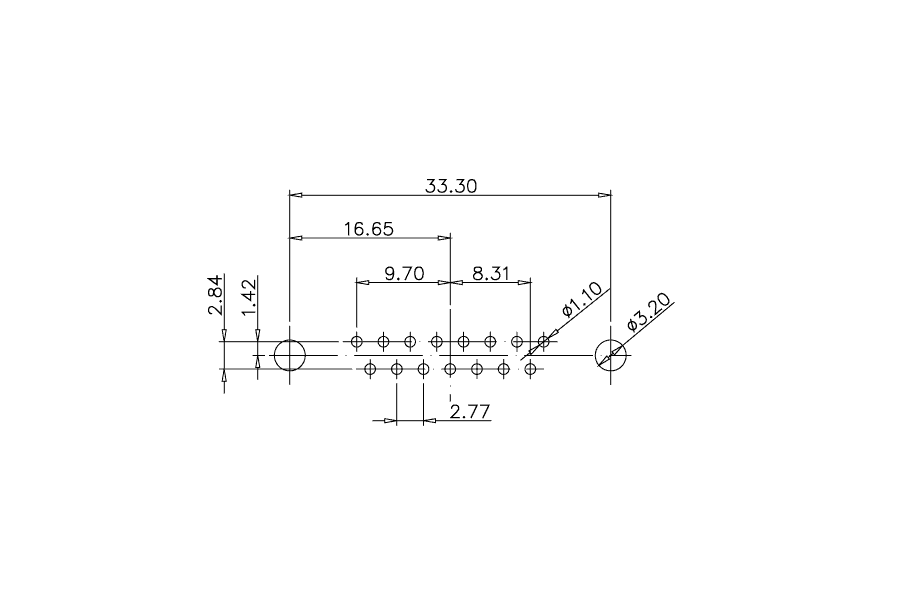

15 pos (click to enlarge)

25 pos (click to enlarge)

37 pos (click to enlarge)

50 pos (click to enlarge)
