Tech Specs

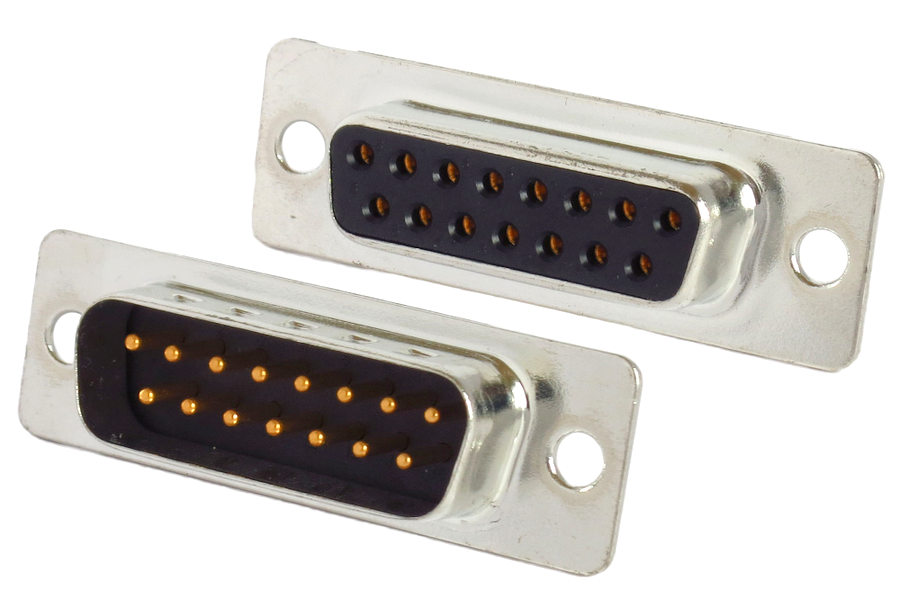

Standard Density

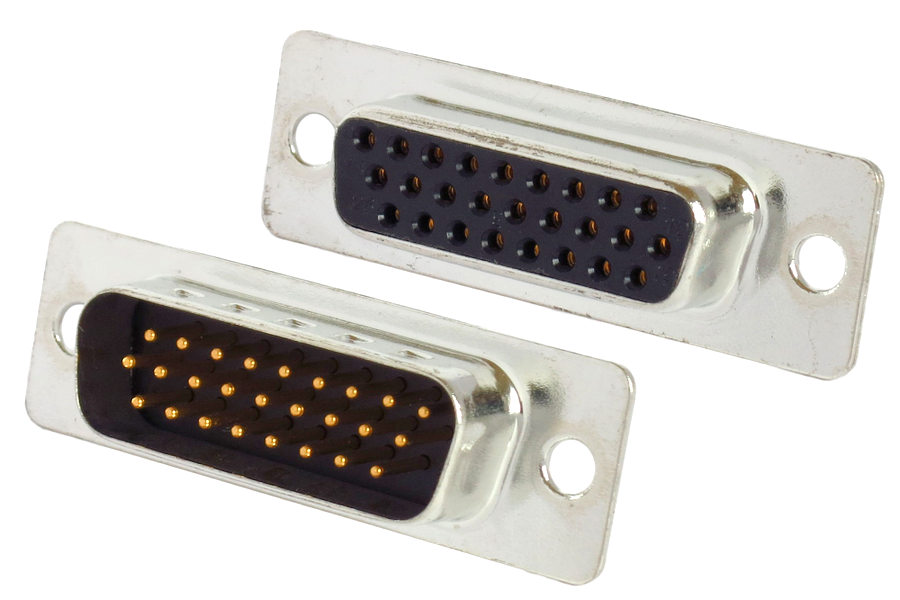

High Density
Material
Shell
Steel with Tin plating (Optional Nickel plating)
Insulator
Polyester PBT 30% GF, UL 94V-0,
Colors*:
*Contact Konmek for avaliability of colored insulators, black is standard
Polyester PBT 30% GF, UL 94V-0,
Colors:
Contacts
Copper alloy, Gold plated over Nickel
Electrical Characteristics
Working Voltage
125V
60V
Test Voltage
1000V for 1min (Dielectric withstanding voltage)
Current Rating
5.0A
3.0A
Contact Resistance
10mΩ max. (25mΩ max for R/A)
Insulation Resistance
5GΩ min
Mechanical Characteristics
Temperature rating
-55℃ to +125℃
Quality Class
Quality Class 1 (30u" Gold plated)
Quality Class 3 (8u" Gold plated)
*More plating alternmatives, contact Konmek Service.
Layout
| Standard Density | High Density | ||||
|---|---|---|---|---|---|
|
|
||||
|
|
||||
|
|
||||
|
|
||||
|
|
