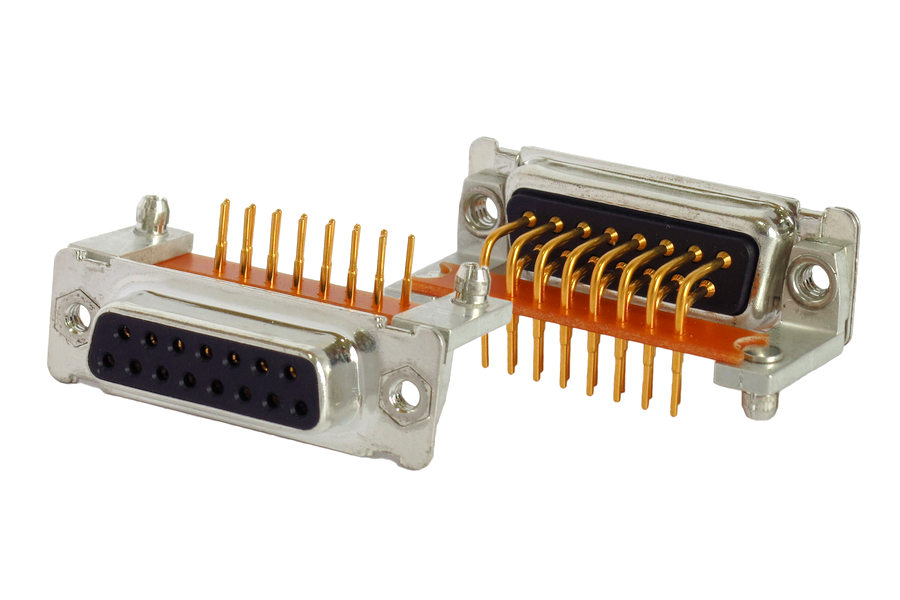

7.2 R/A PCB solder

Male (click to enlarge)

Female (click to enlarge)

Drawing

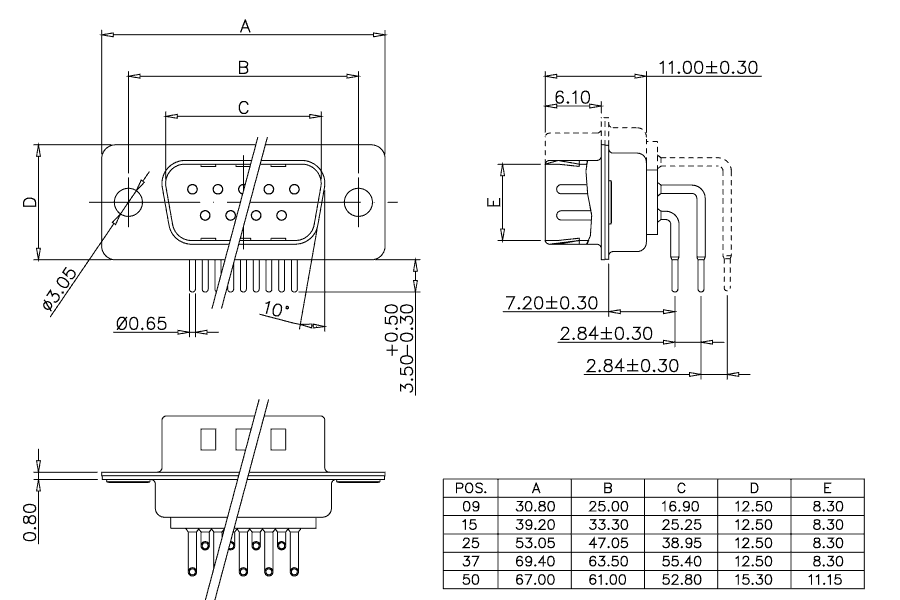

Male (click to enlarge)

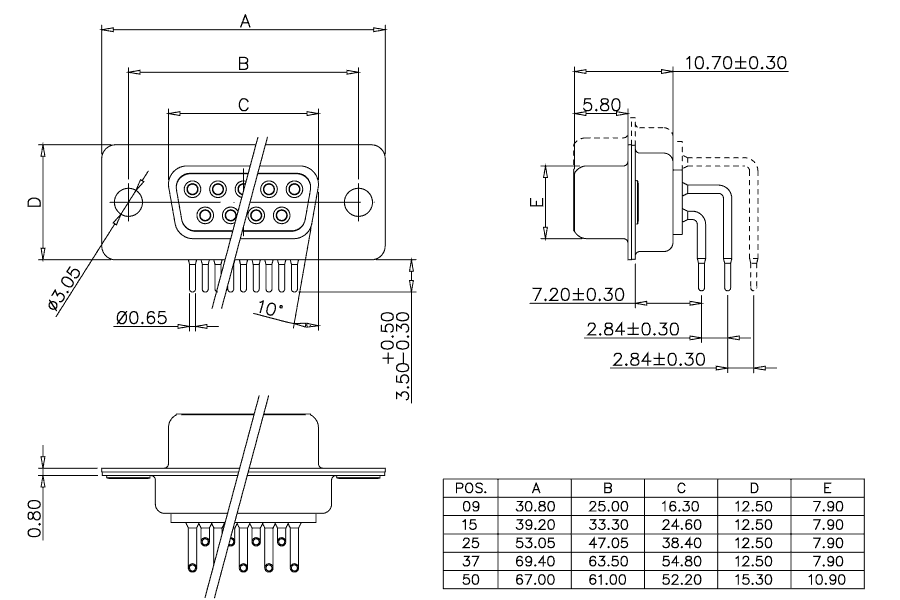

Female (click to enlarge)

Part Number Code

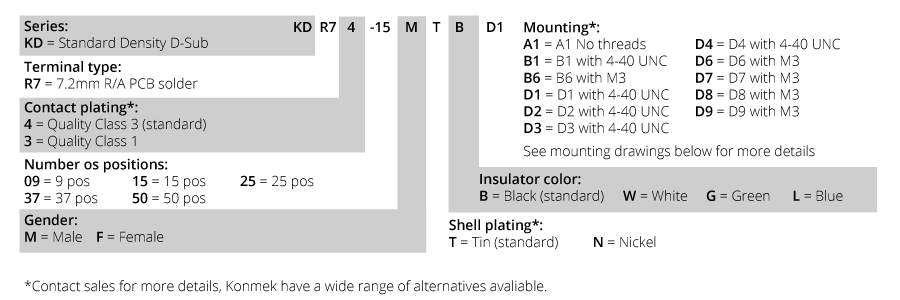

Part Number Code (click to enlarge)

Mounting

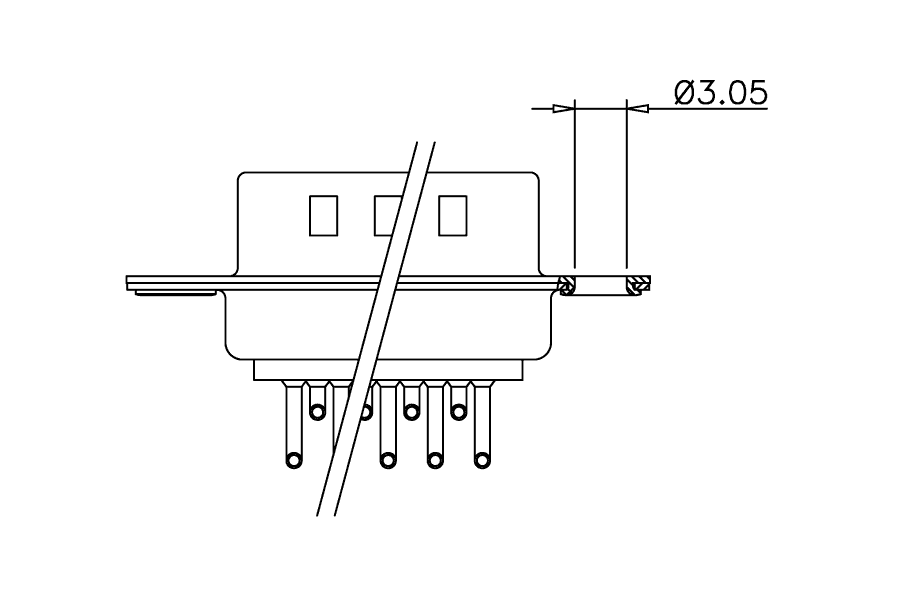

A1 (click to enlarge)

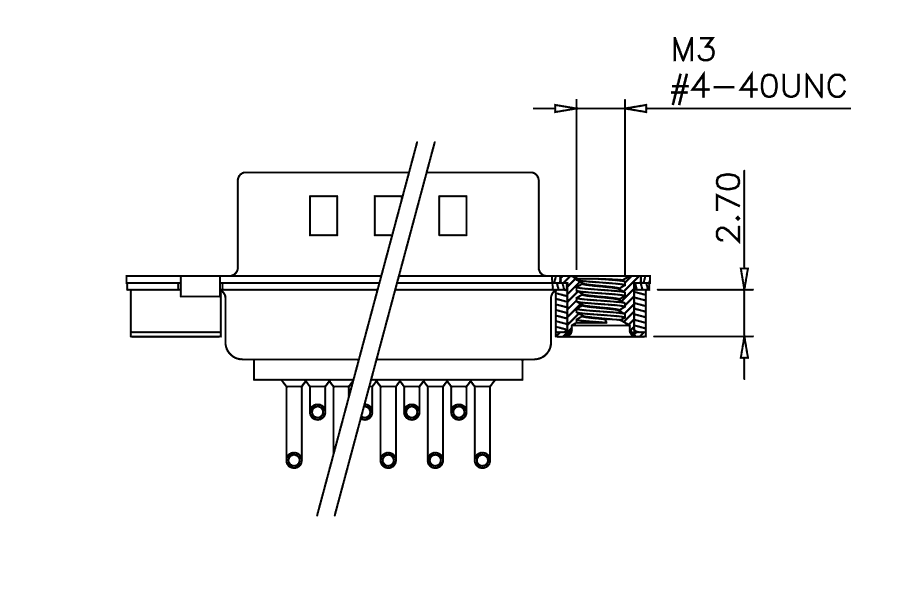

B1/B6 (click to enlarge)

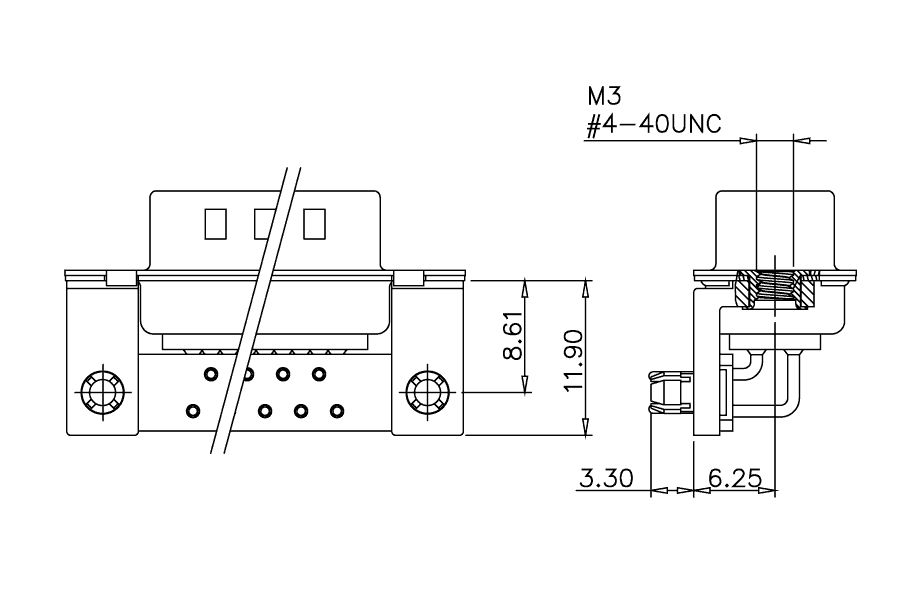

D1/D6 (click to enlarge)

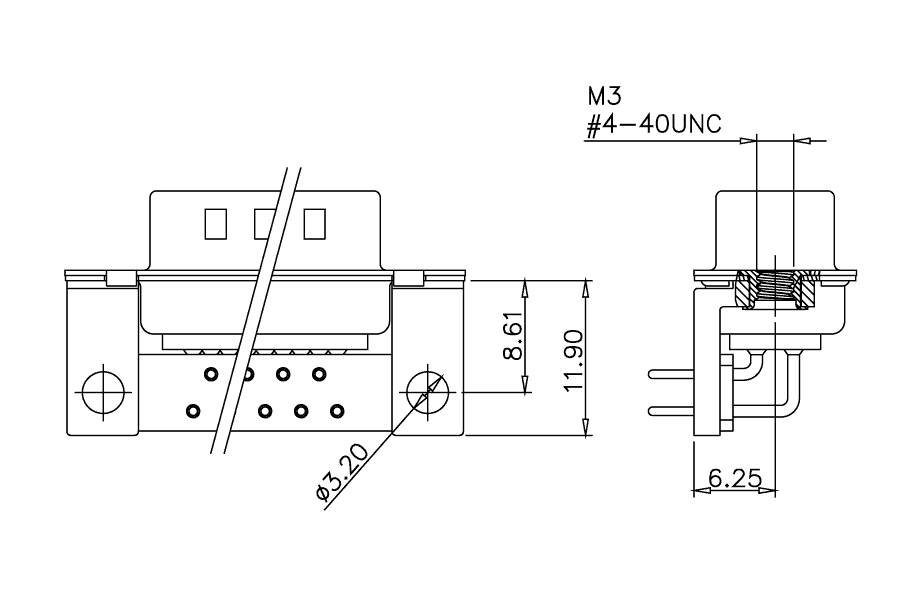

D2/D7 (click to enlarge)

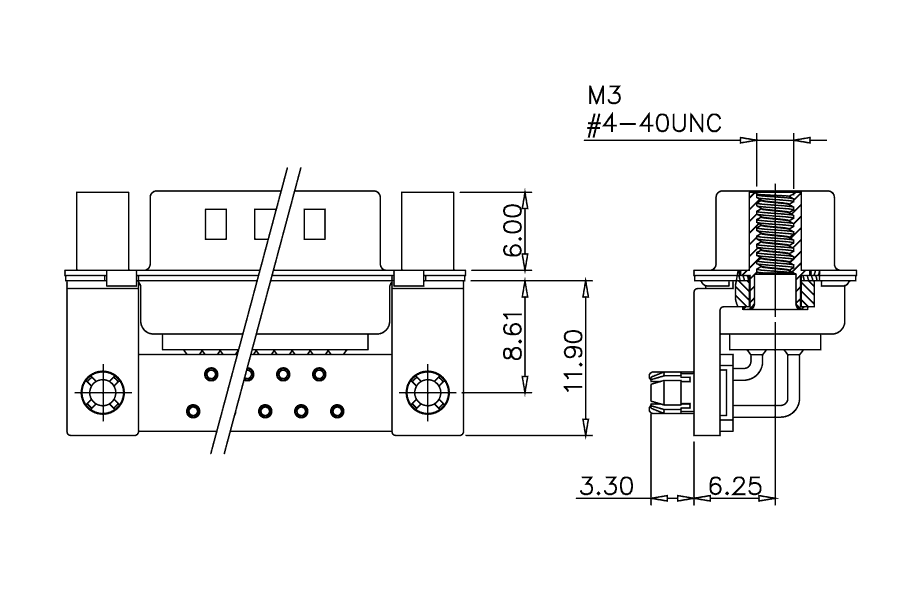

D3/D8 (click to enlarge)

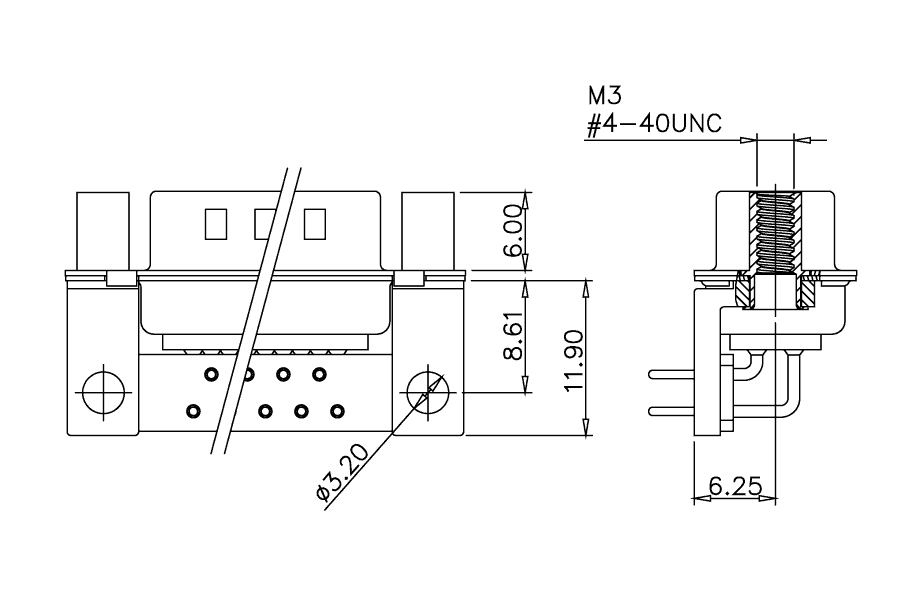

D4/D9 (click to enlarge)

PCB Layout

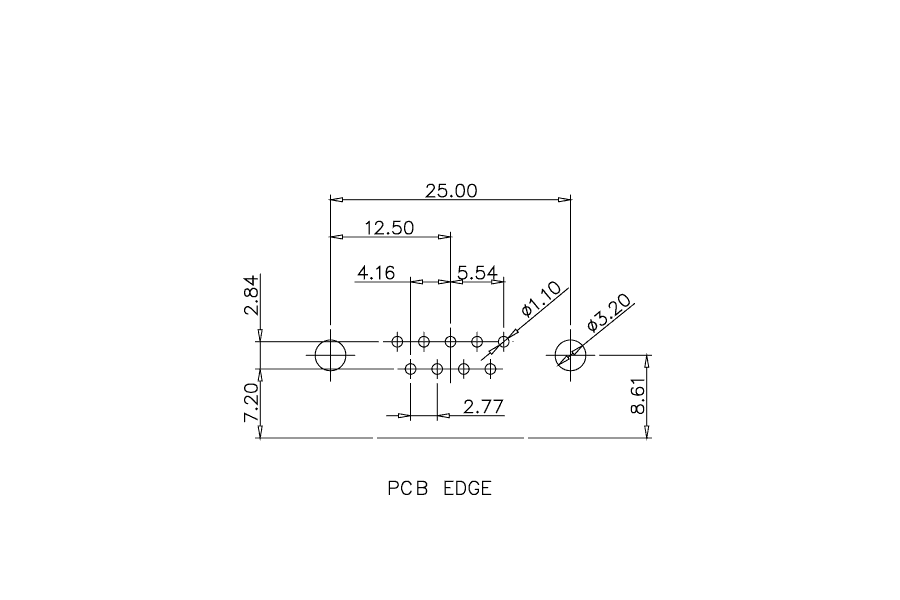

9 pos (click to enlarge)

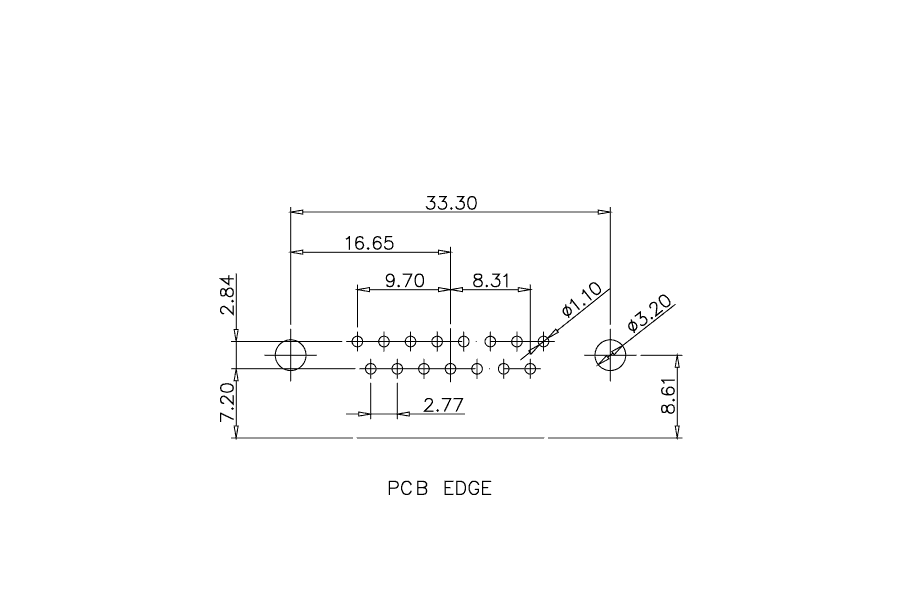

15 pos (click to enlarge)

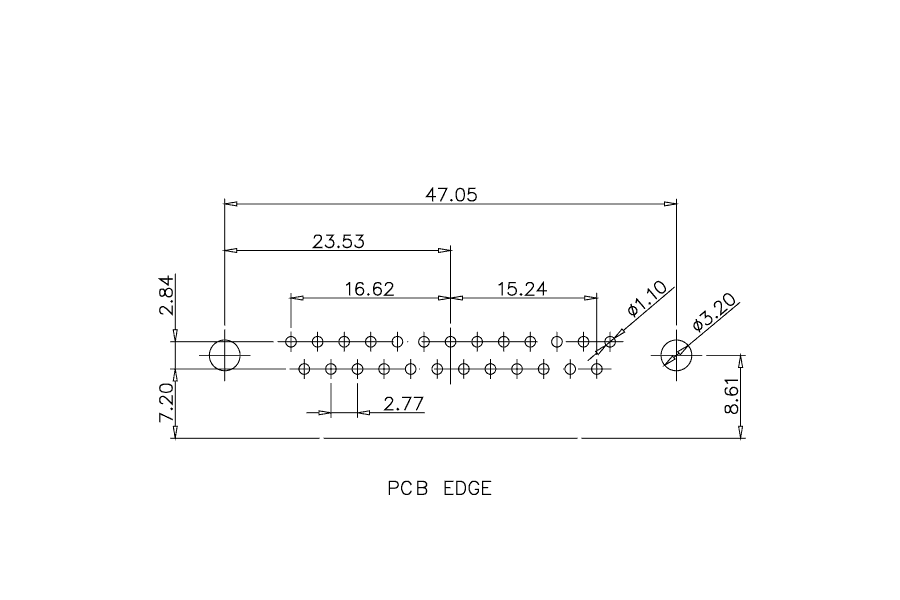

25 pos (click to enlarge)

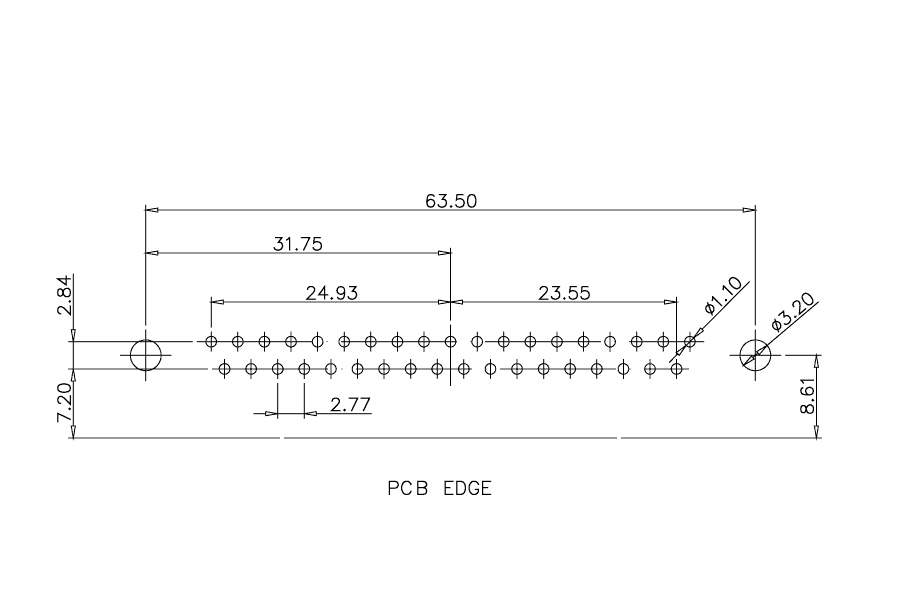

37 pos (click to enlarge)

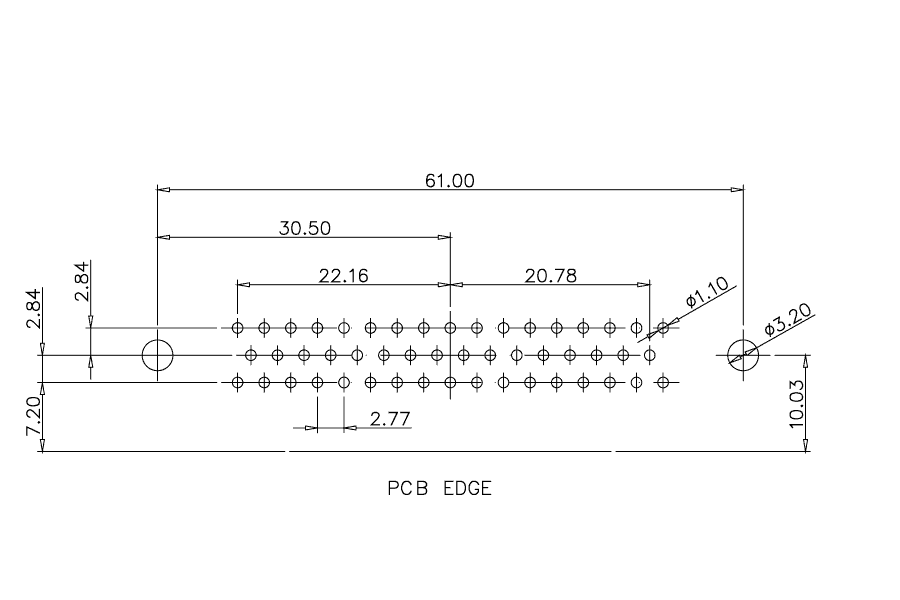

50 pos (click to enlarge)
