R/A PCB solder

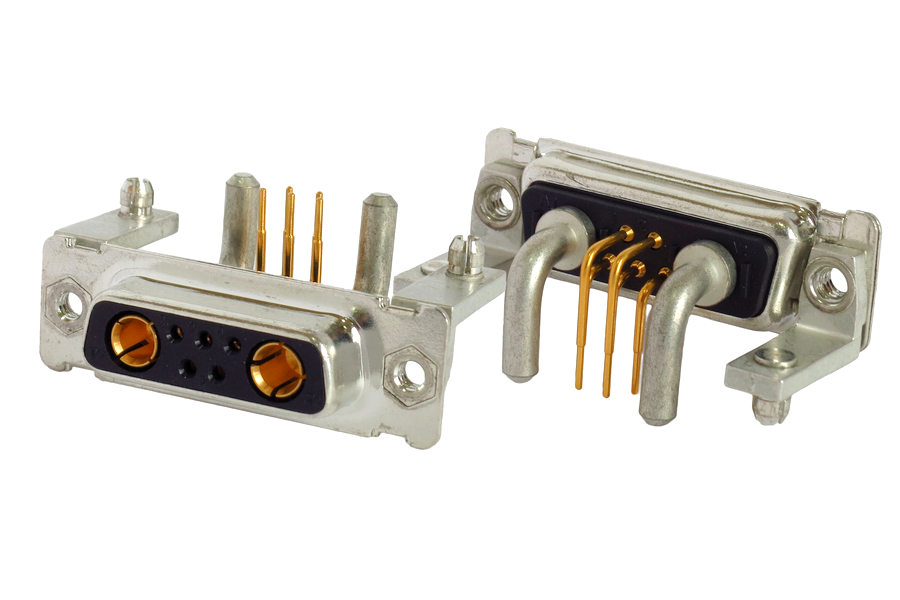

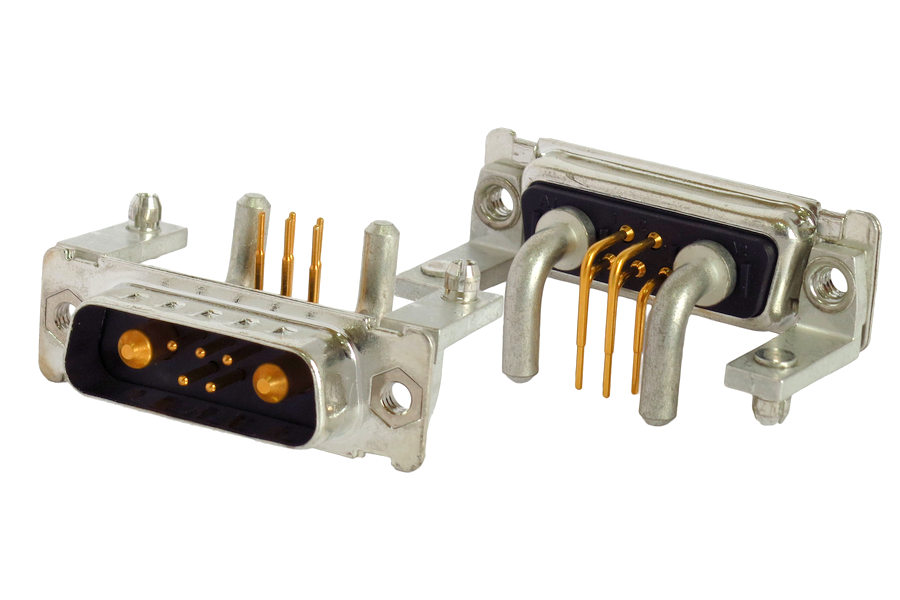

Male (click to enlarge)
Female (click to enlarge)

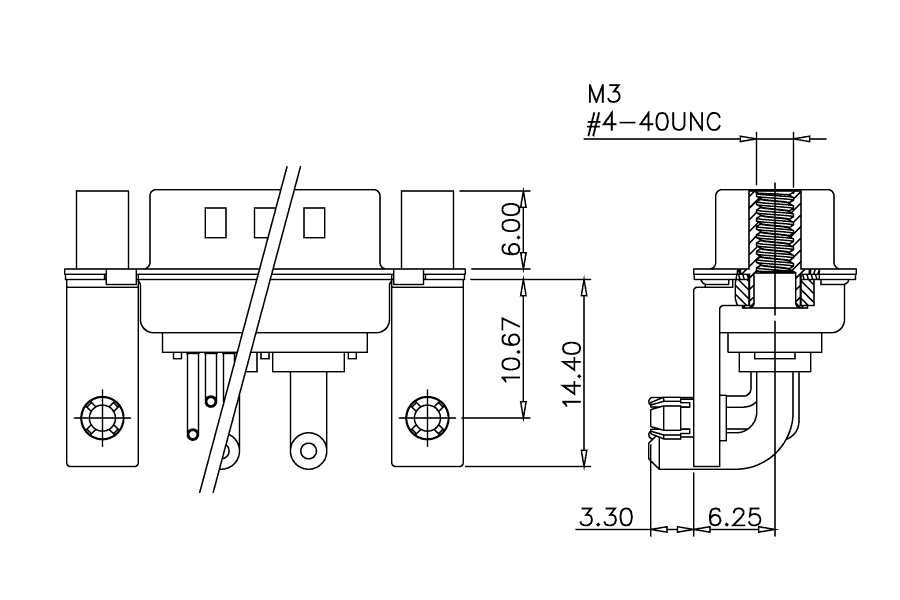

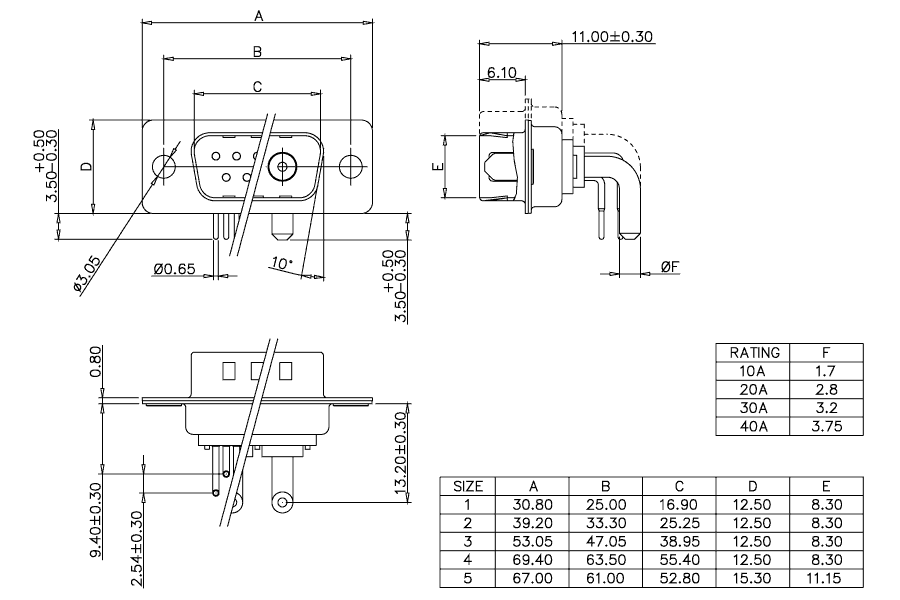

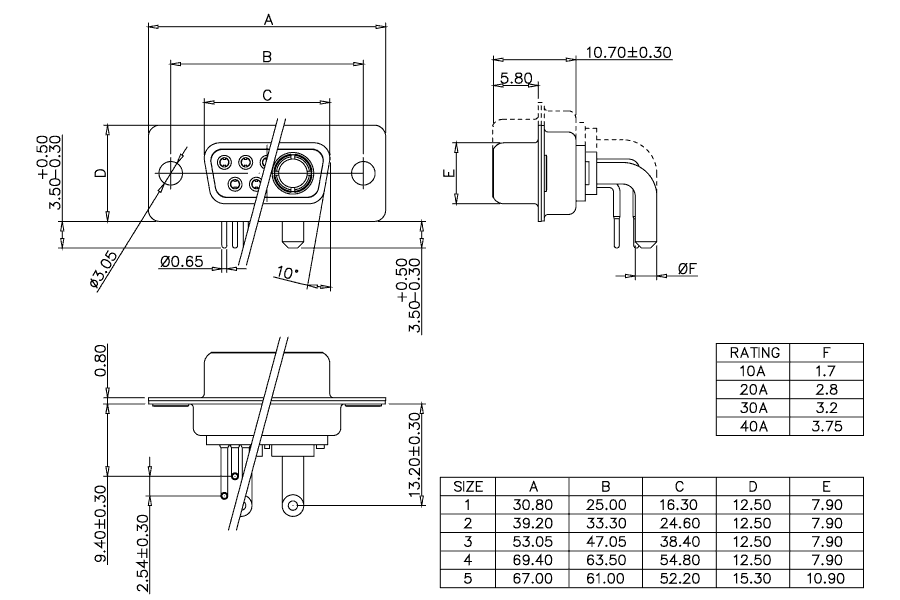

Drawing
Male (click to enlarge)
Female (click to enlarge)

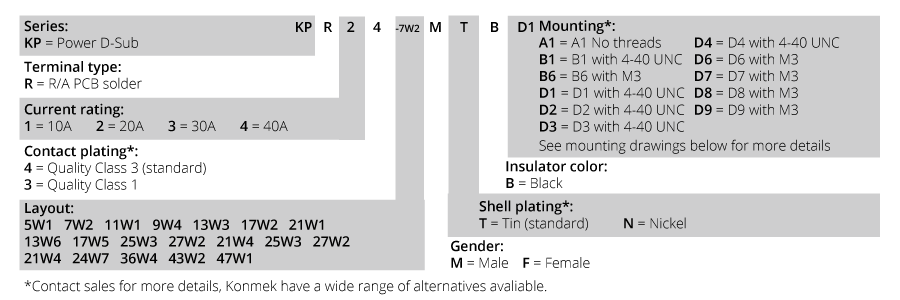

Part Number Code
Part Number Code (click to enlarge)

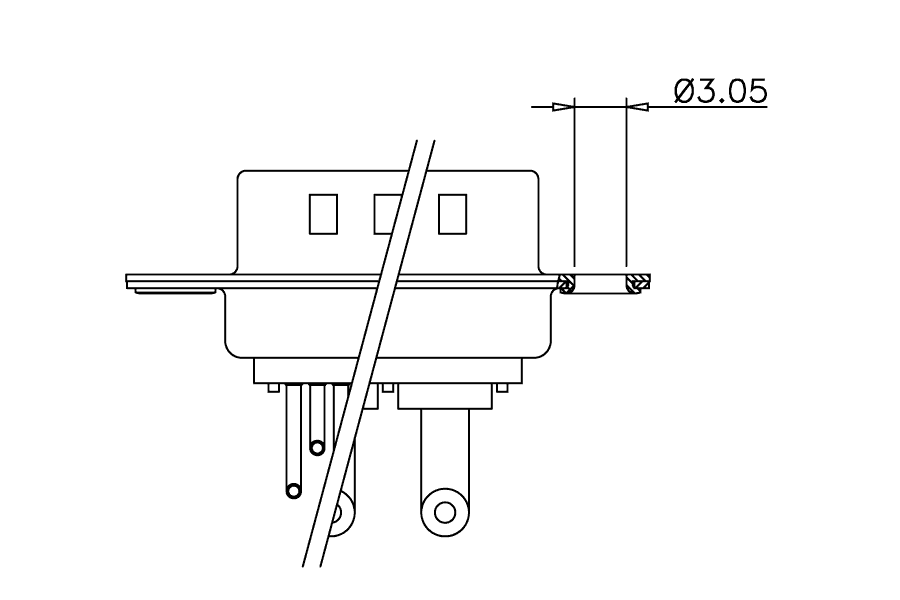

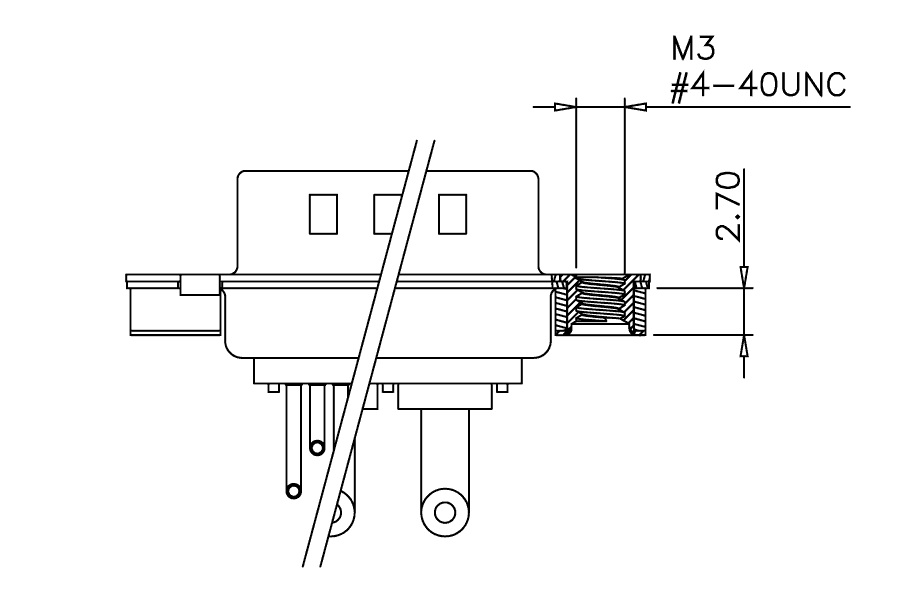

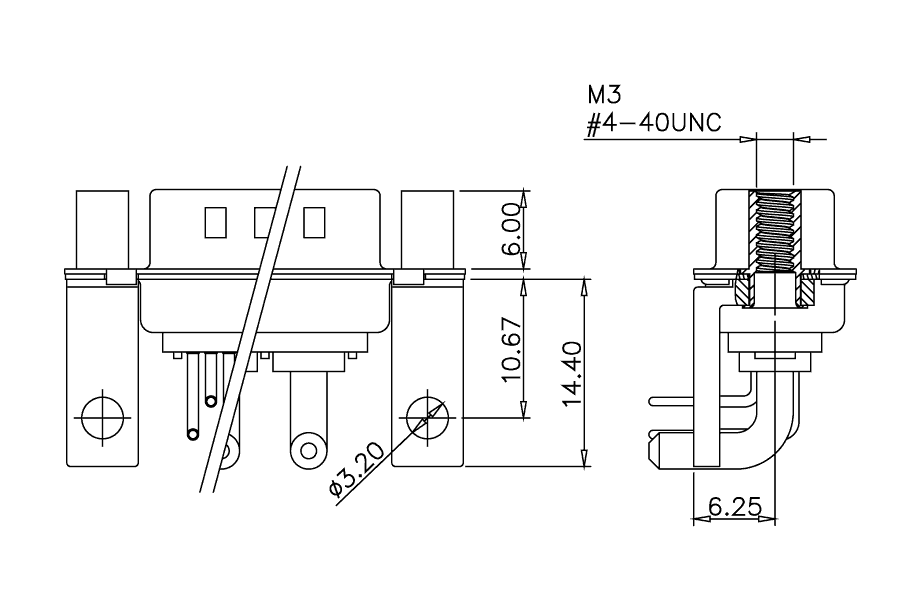

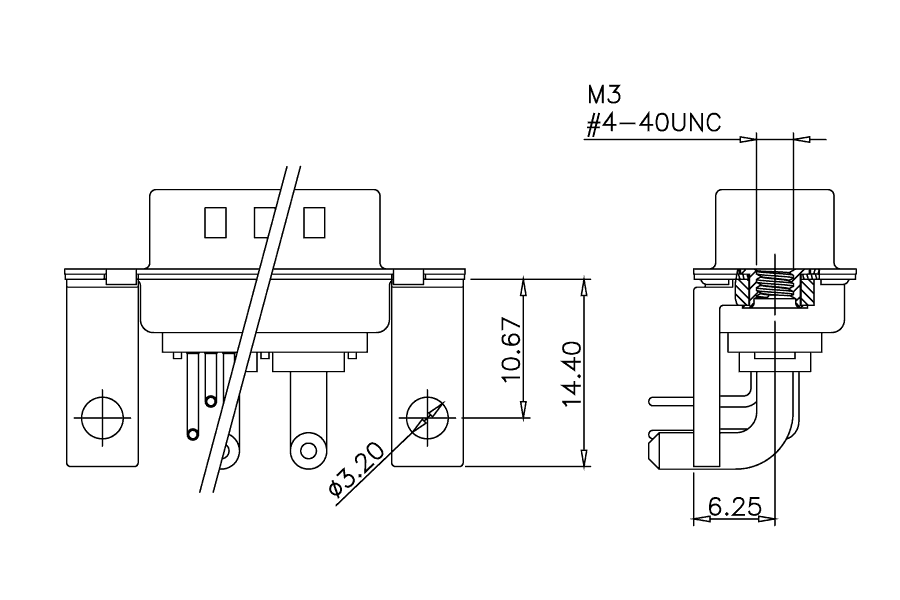

Mounting
A1 (click to enlarge)
B1/B6 (click to enlarge)
D1/D6 (click to enlarge)
D2/D7 (click to enlarge)
D3/D8 (click to enlarge)
D4/D9 (click to enlarge)
PCB Layout

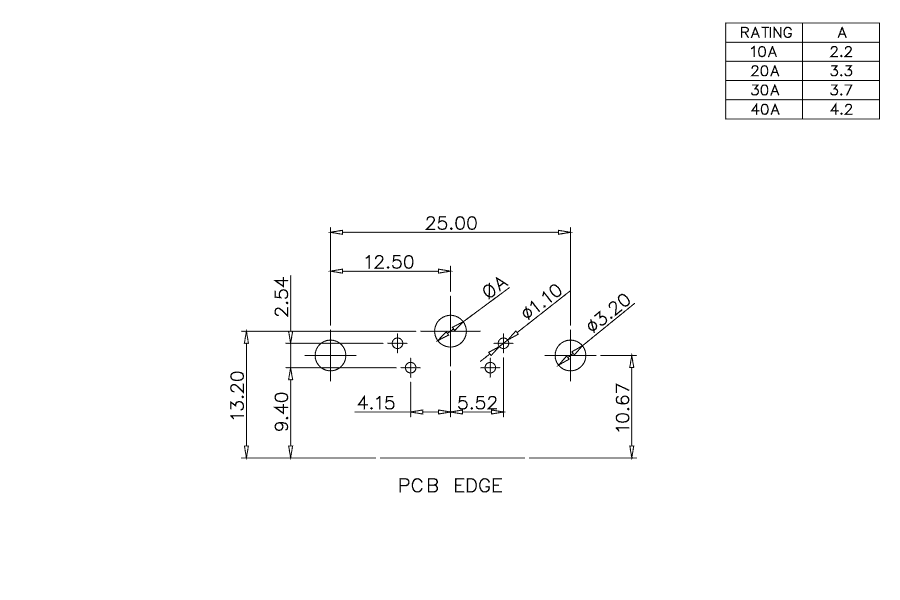

5W1 (click to enlarge)

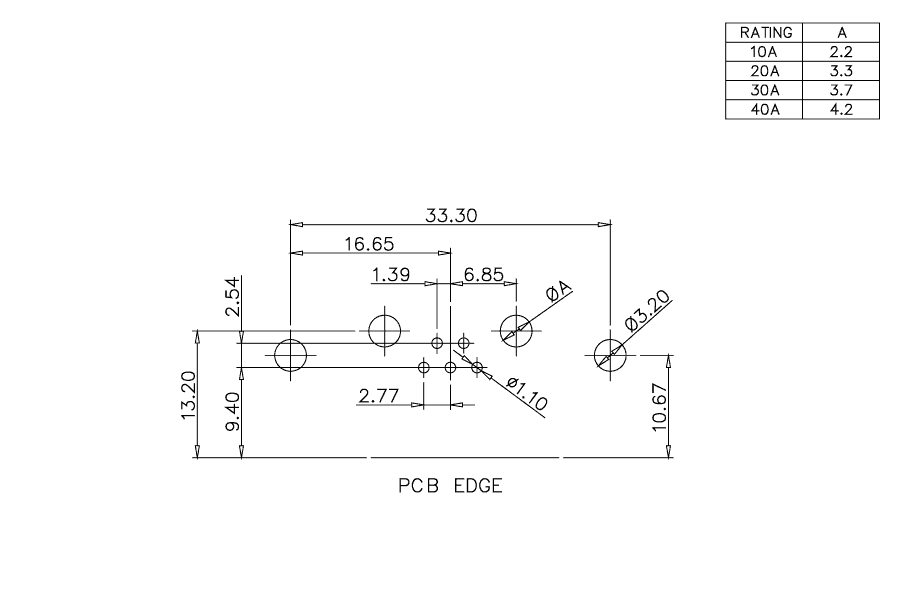

7W2 (click to enlarge)
11W1 (click to enlarge)

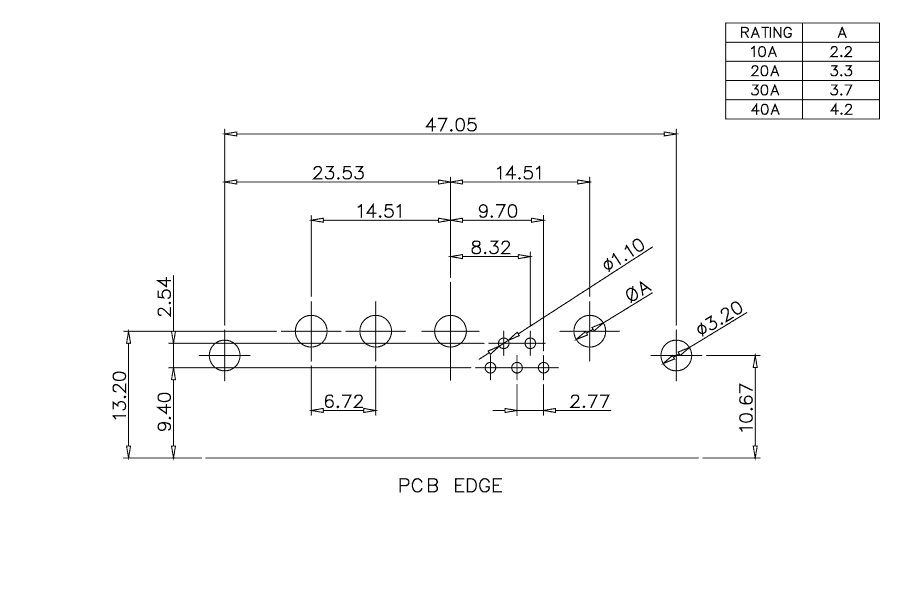

9W4 (click to enlarge)

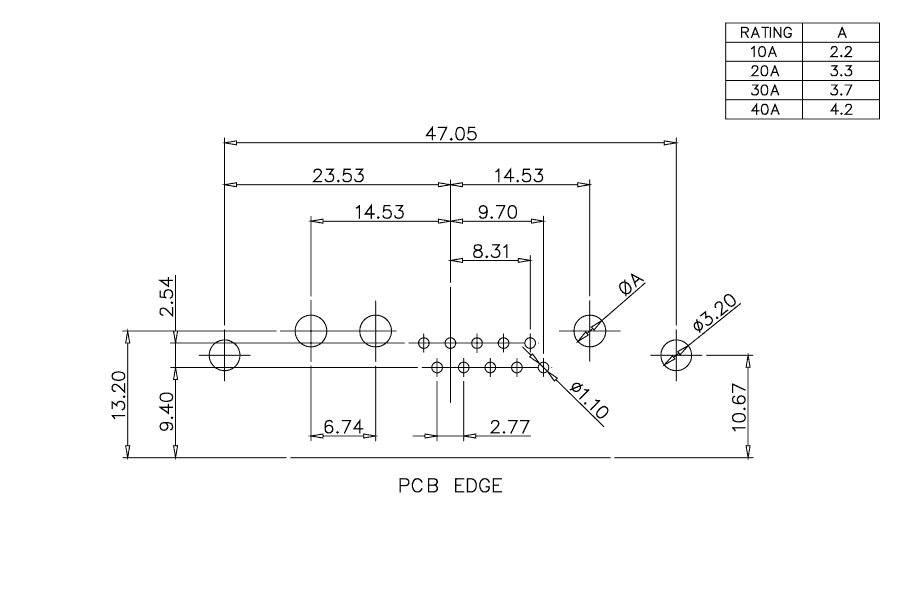

13W3 (click to enlarge)

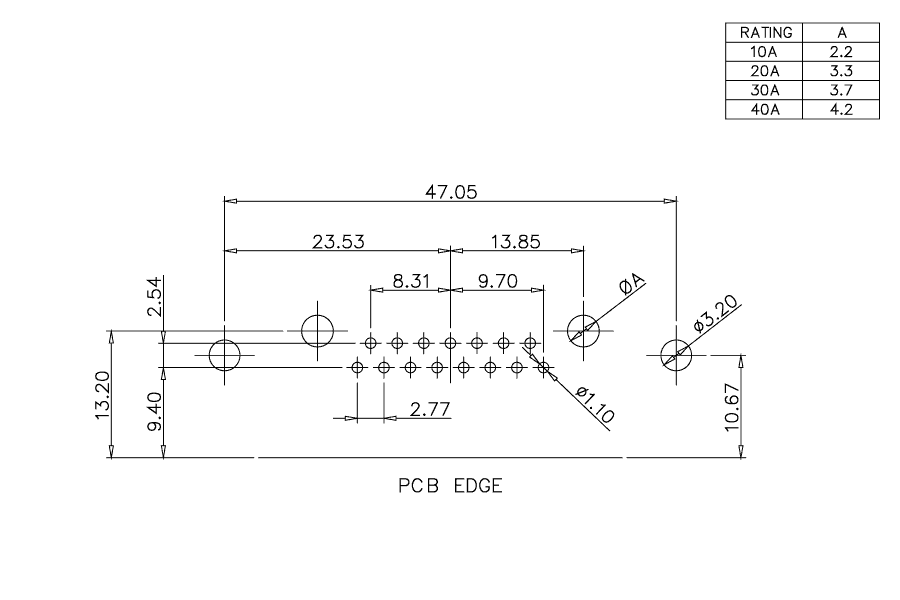

17W2 (click to enlarge)

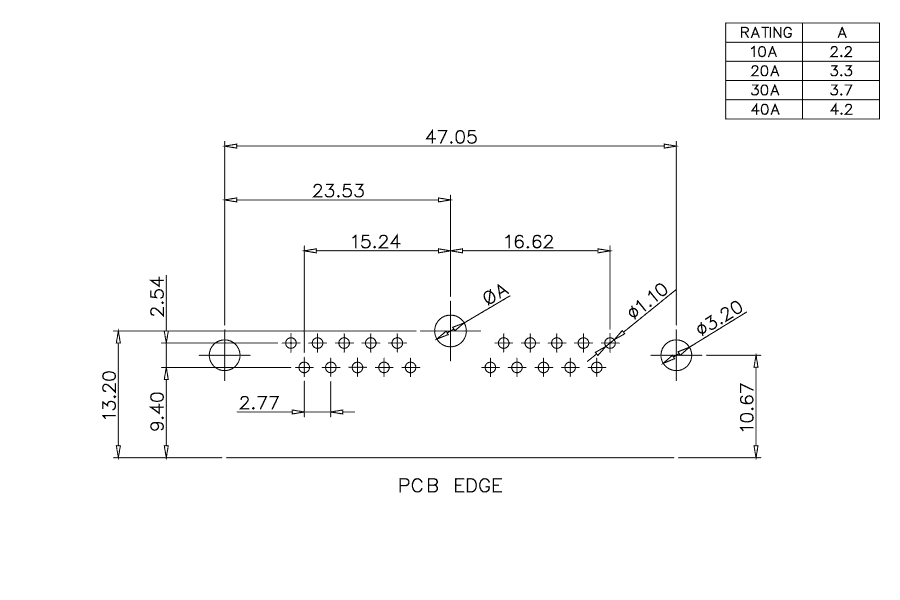

21W1 (click to enlarge)

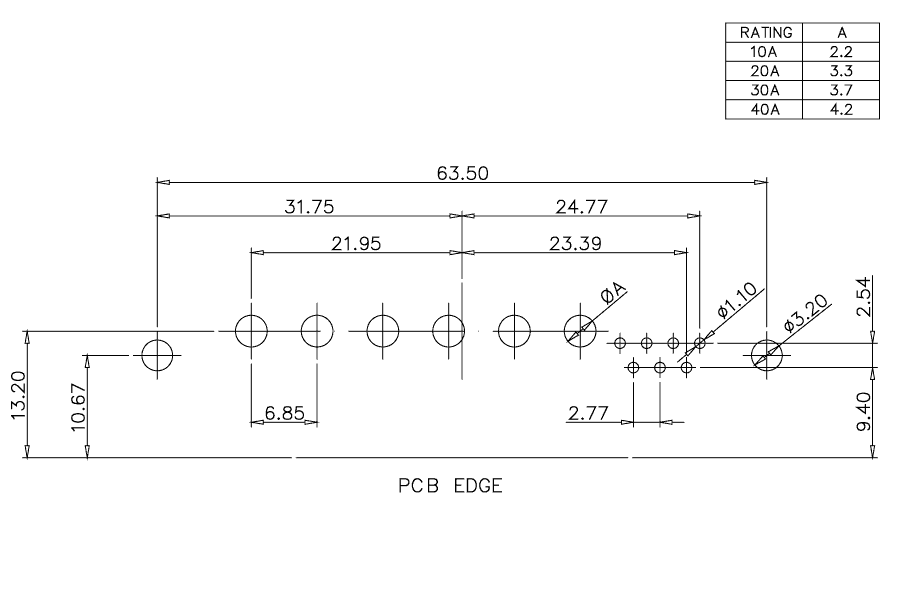

13W6 (click to enlarge)

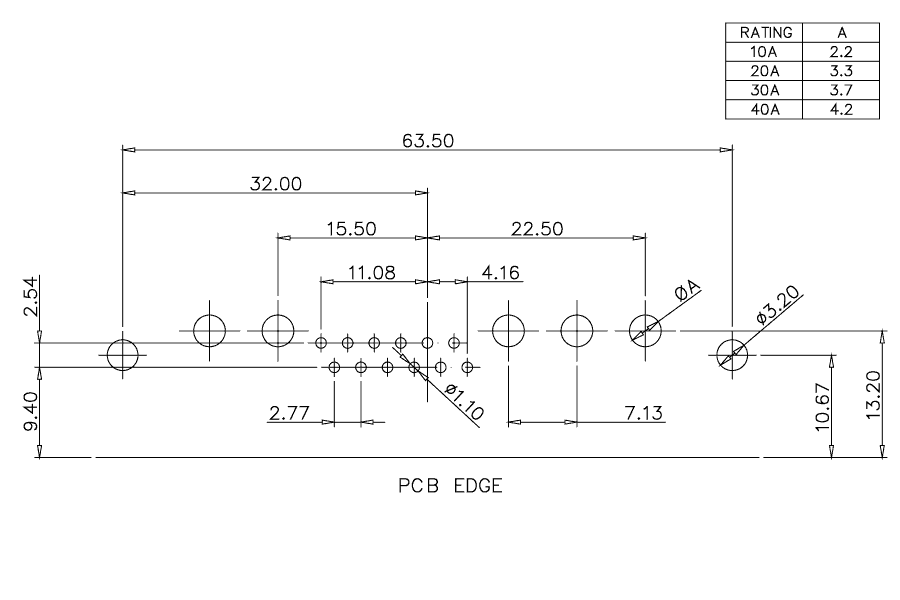

17W5 (click to enlarge)

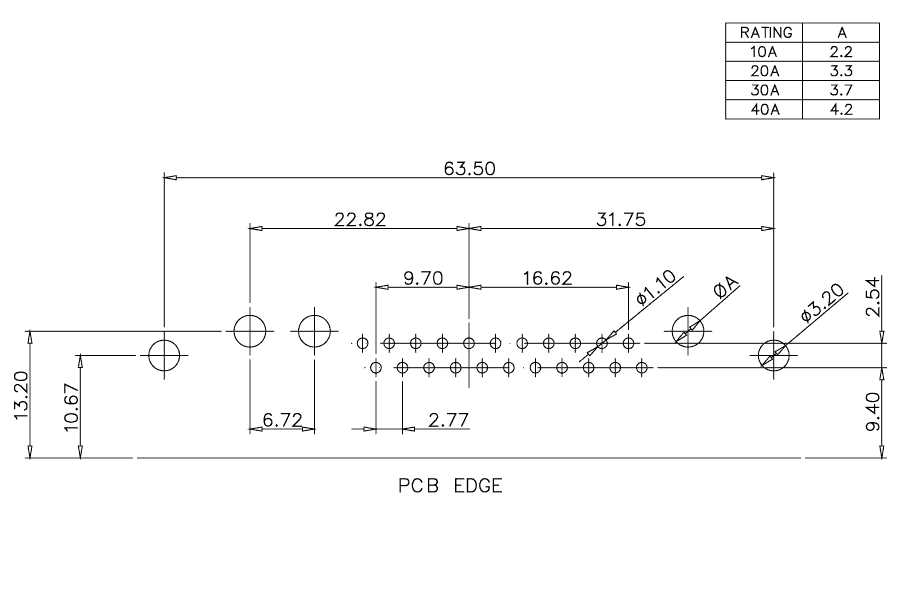

25W3 (click to enlarge)

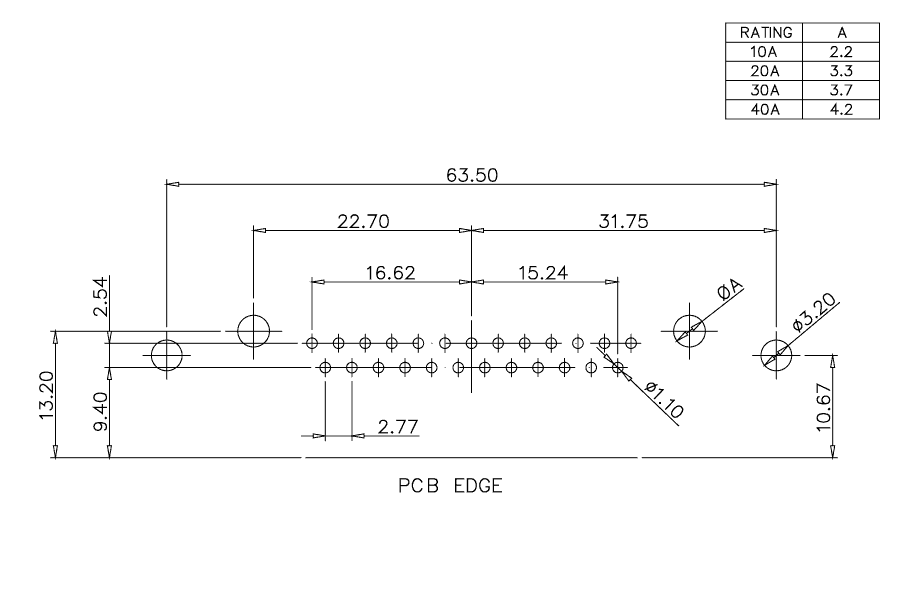

27W2 (click to enlarge)

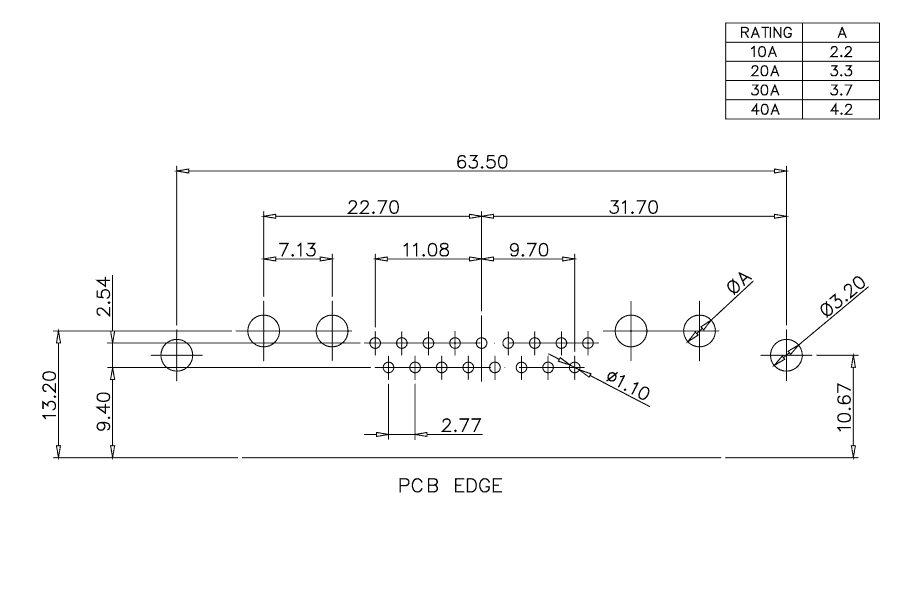

21W4 (click to enlarge)

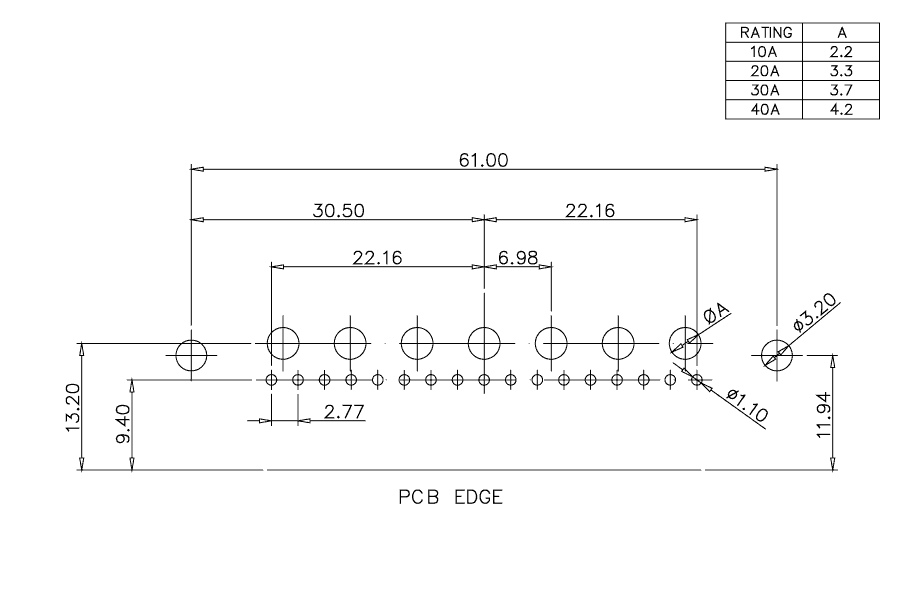

24W7 (click to enlarge)

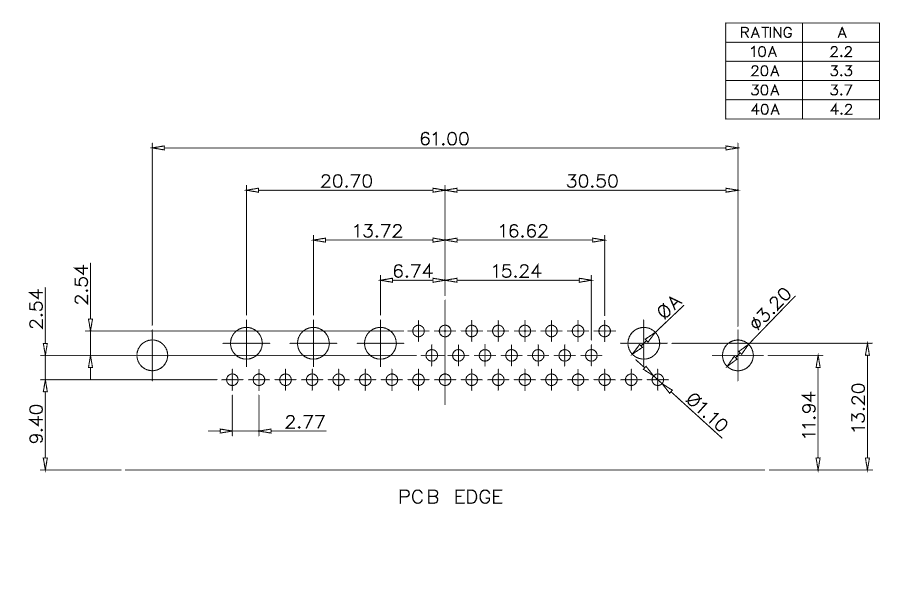

36W4 (click to enlarge)

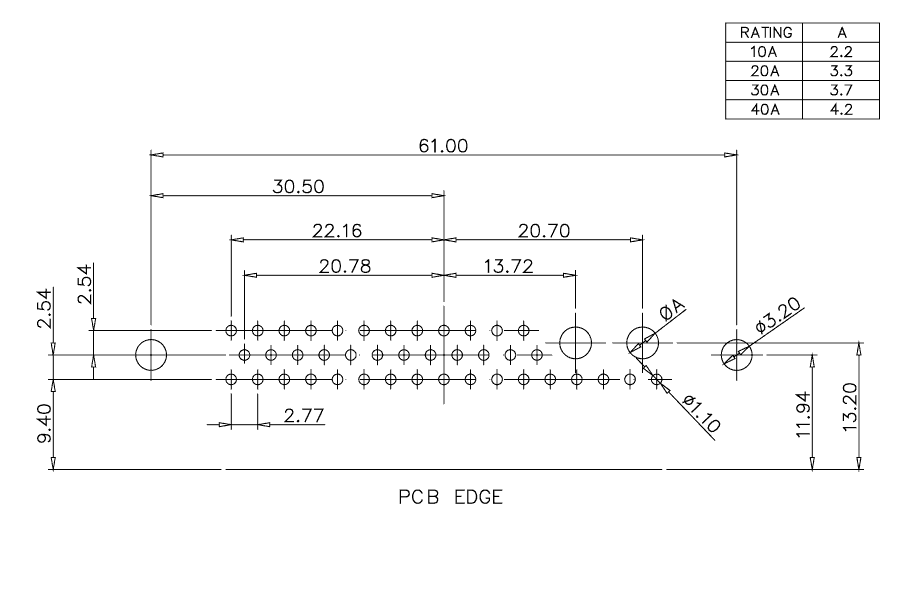

43W2 (click to enlarge)

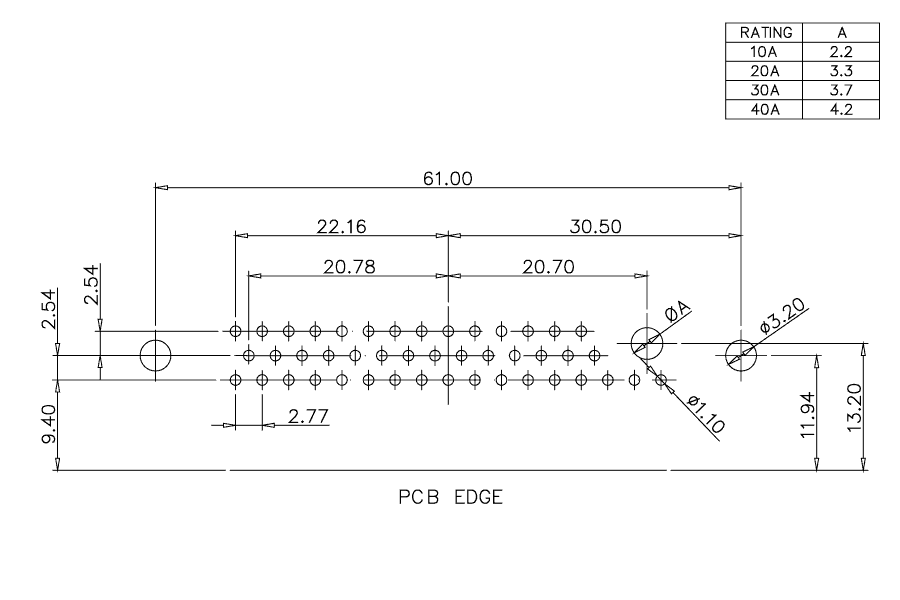

47W1 (click to enlarge)
