Tech Specs

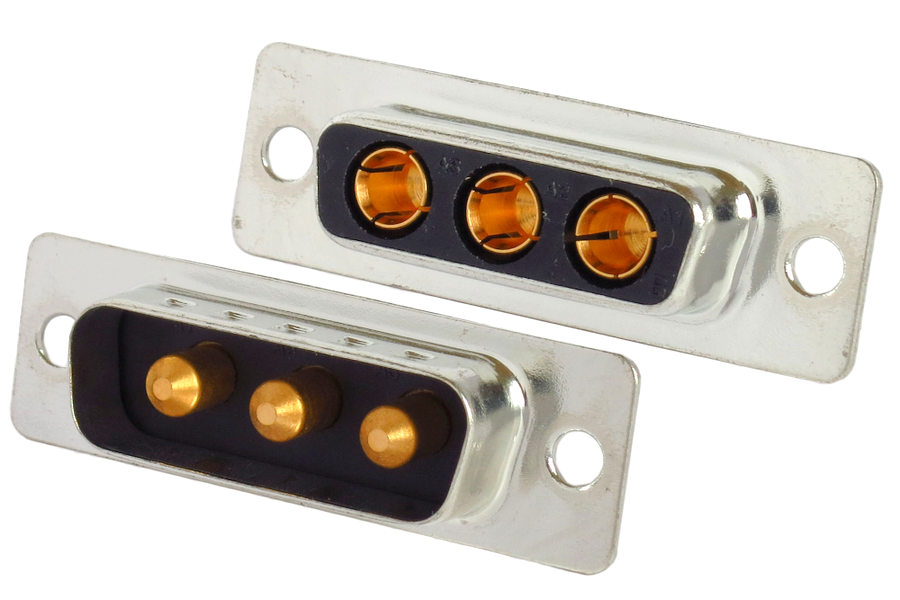

Full Layout

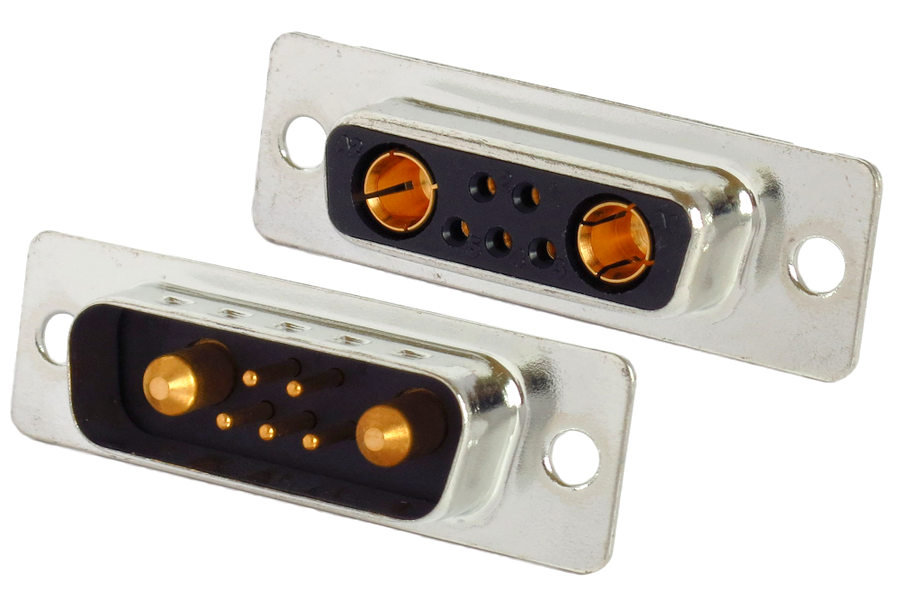

Mixed Layout
Material
Shell
Steel with Tin plating (Optional Nickel plating)
Insulator
Polyester PBT 30% GF, UL 94V-0,
Colors:
Contacts
Copper alloy, Gold plated over Nickel
Selective plating Matte Tin on terminal on power contacts
Electrical Characteristics
Working Voltage
125V
Test Voltage
1000V for 1min (Dielectric withstanding voltage)
Signal Contact Current Rating
5.0A
Power Contact Current Rating
10A, 20A, 30A and 40A
Contact Resistance
10mΩ max. (25mΩ max for R/A)
Insulation Resistance
5GΩ min
Mechanical Characteristics
Temperature rating
-55℃ to +125℃
Quality Class
Quality Class 1 (30u" Gold plated)
Quality Class 3 (8u" Gold plated)
Selective plating Matte Tin on terminal side for power contacts
Signal contacts have full gold plating
More plating alternatives, contact Konmek Service
Layout
| Full Layout | Mixed Layout | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
||||||||||||
|
|
||||||||||||
|
|
||||||||||||
|
|
||||||||||||
|
|
|
