R/A PCB solder

Male (click to enlarge)

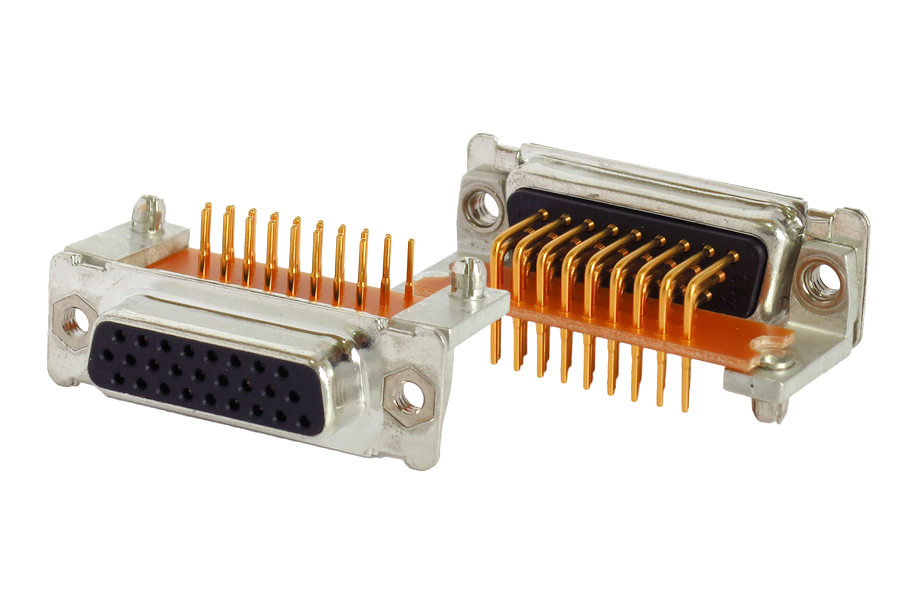

Female (click to enlarge)

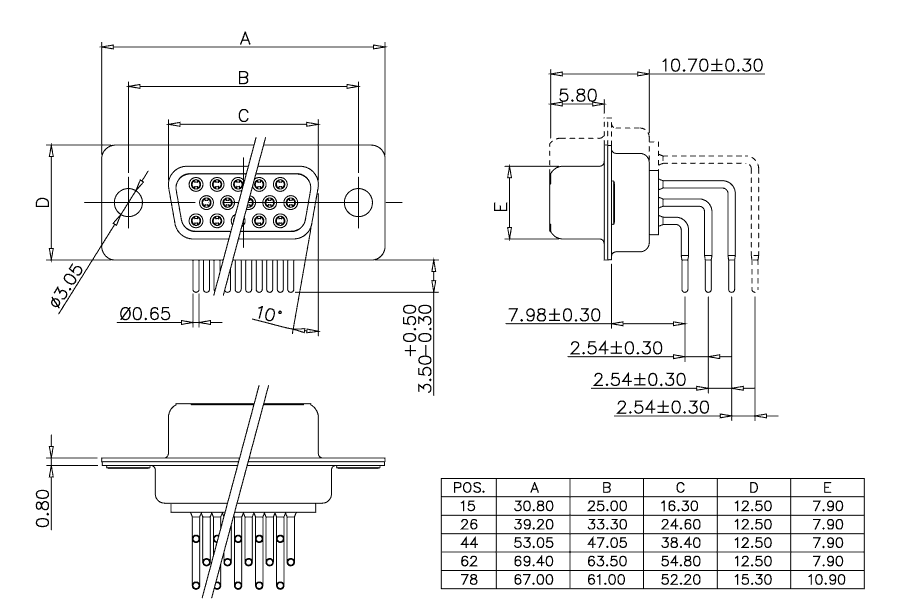

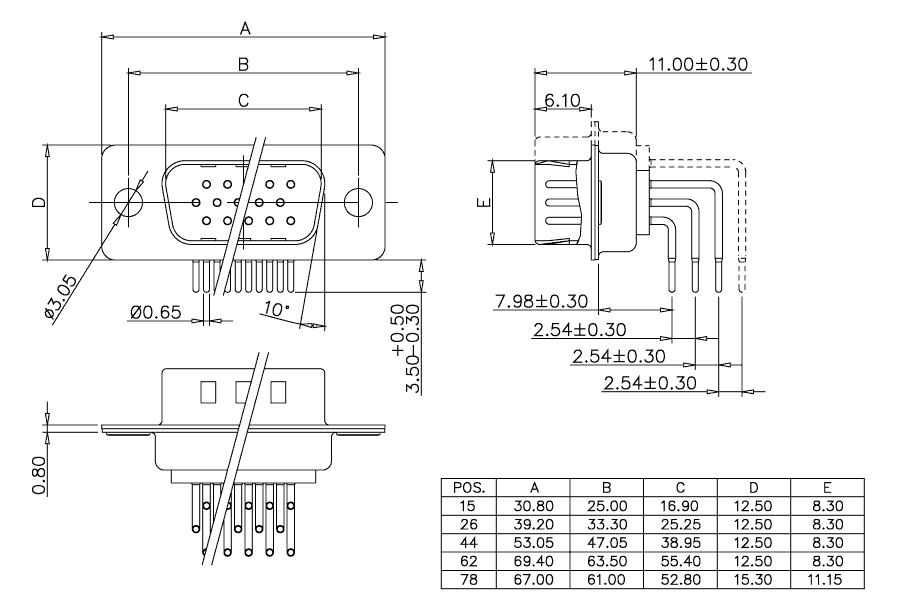

Drawing

Male (click to enlarge)

Female (click to enlarge)

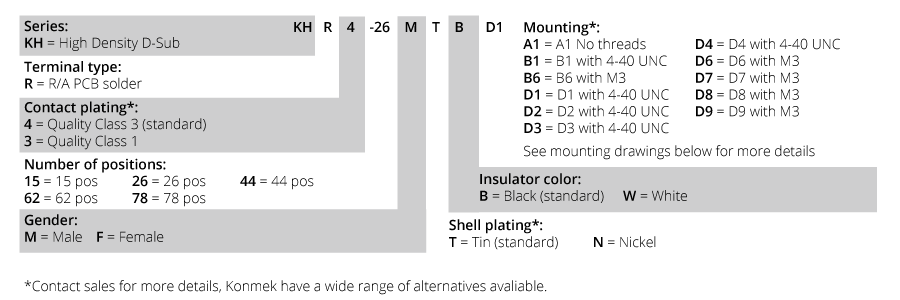

Part Number Code

Part Number Code (click to enlarge)

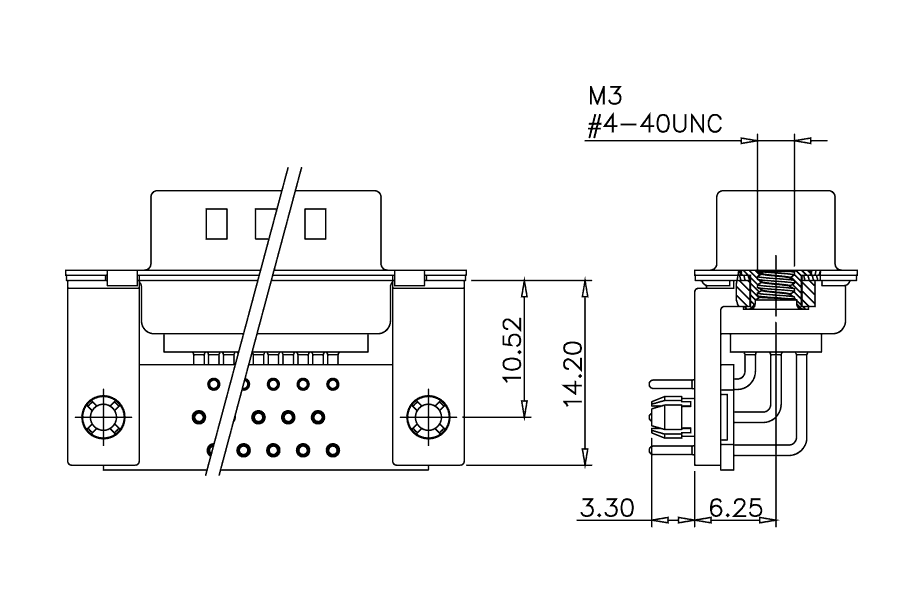

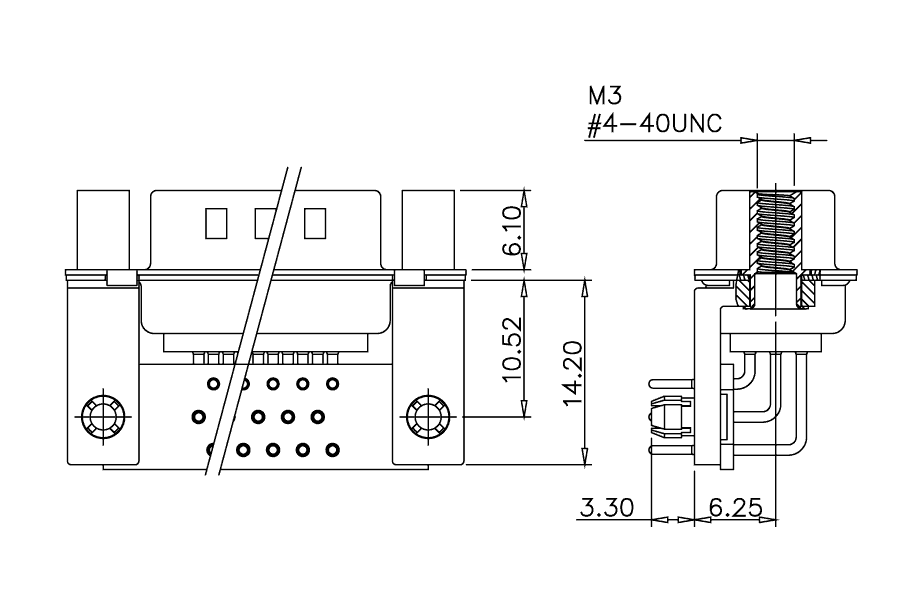

Mounting

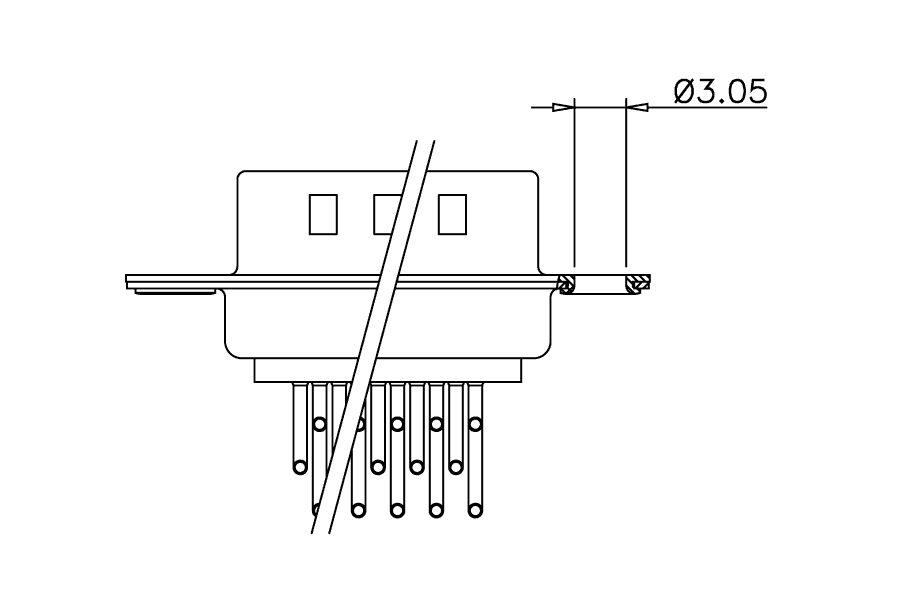

A1 (click to enlarge)

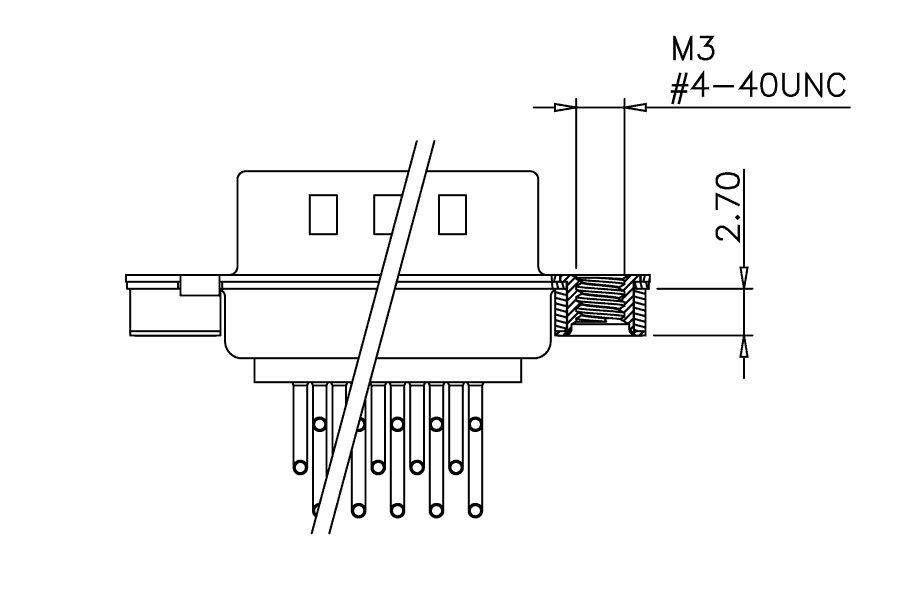

B1/B6 (click to enlarge)

D1/D6 (click to enlarge)

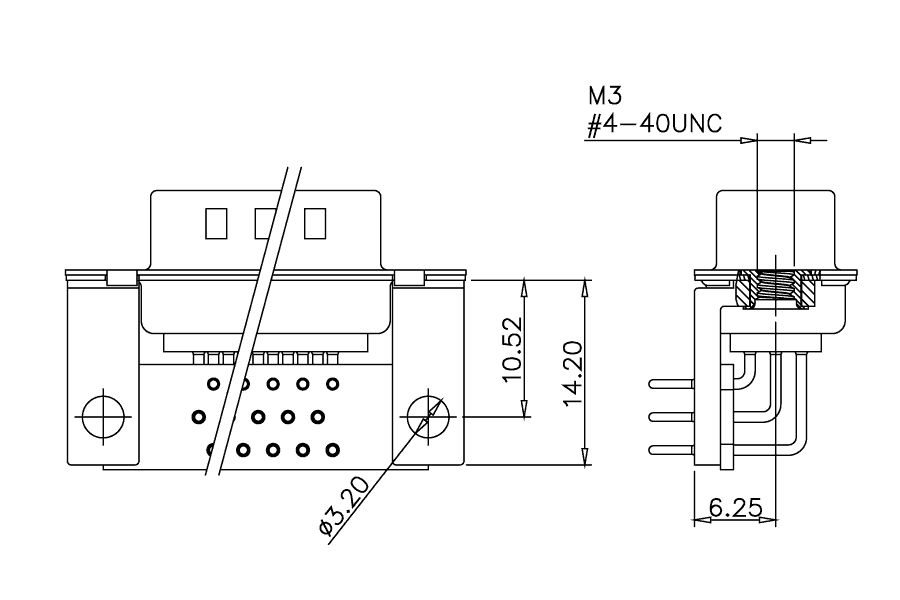

D2/D7 (click to enlarge)

D3/D8 (click to enlarge)

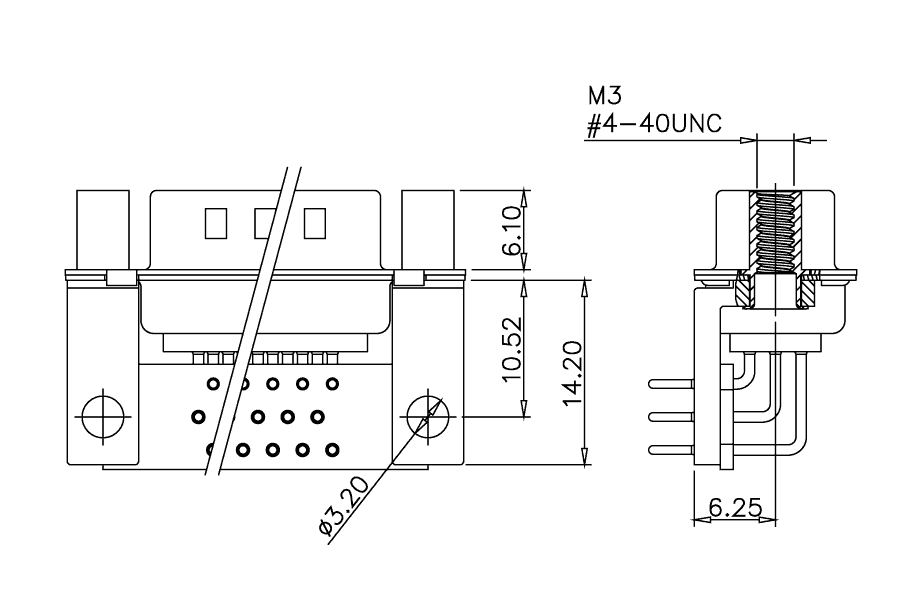

D4/D9 (click to enlarge)

PCB Layout

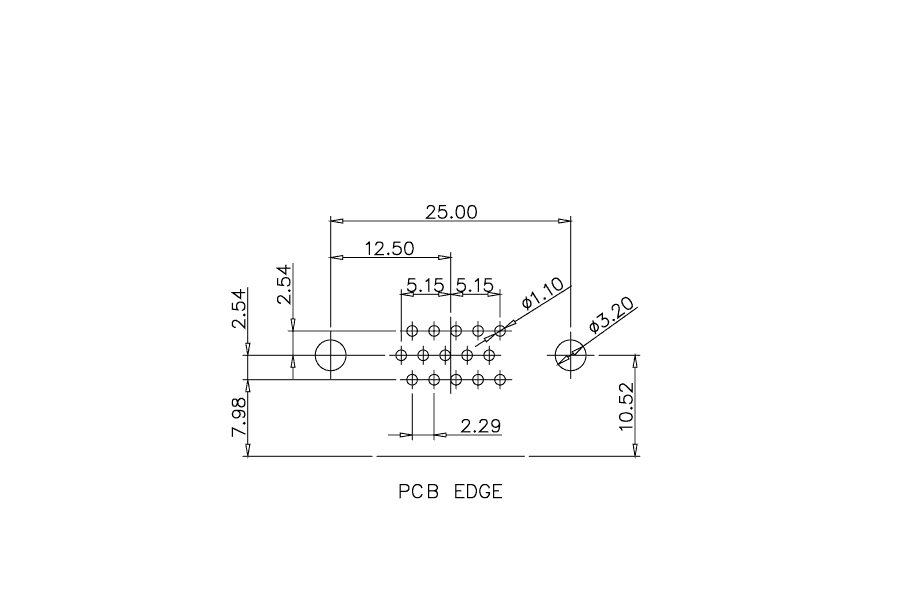

15 pos (click to enlarge)

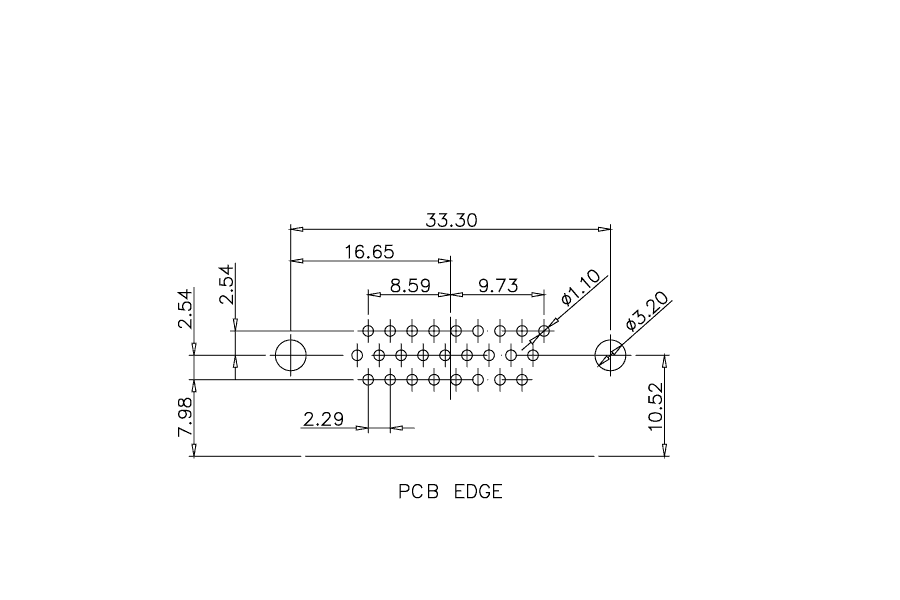

26 pos (click to enlarge)

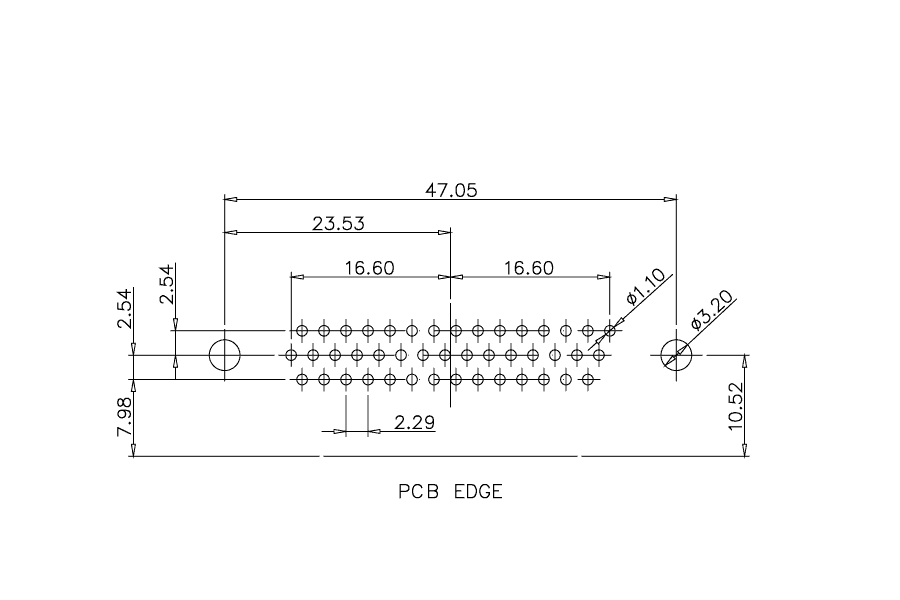

44 pos (click to enlarge)

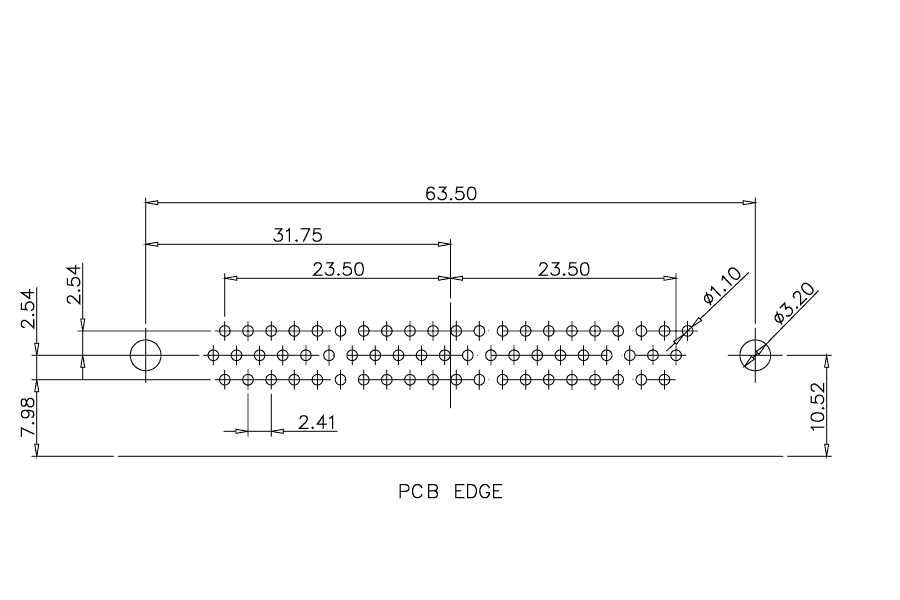

62 pos (click to enlarge)

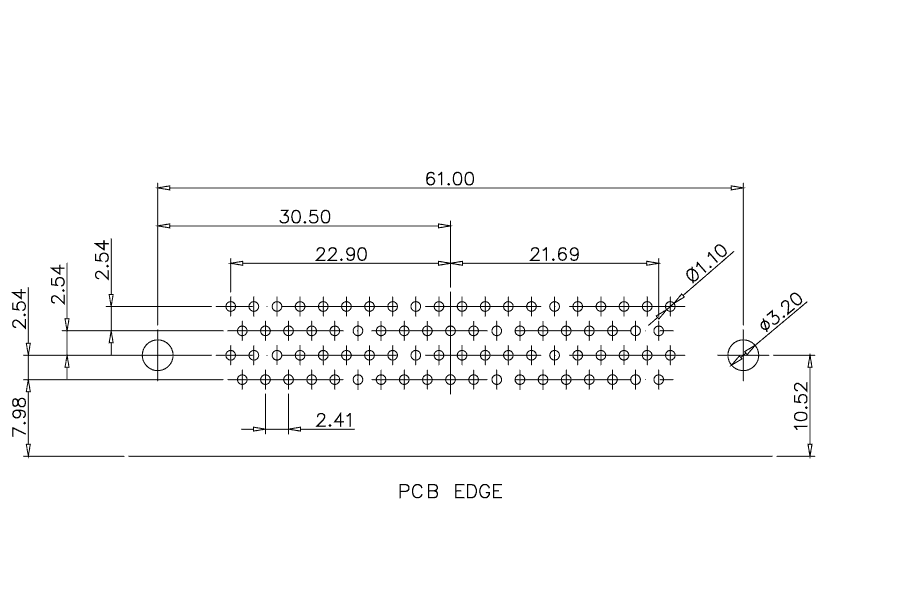

78 pos (click to enlarge)
