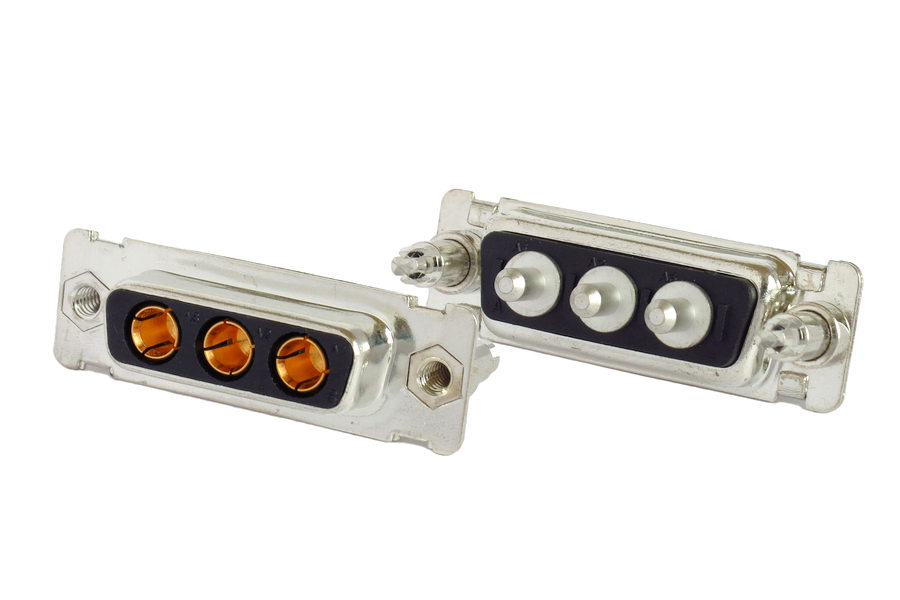

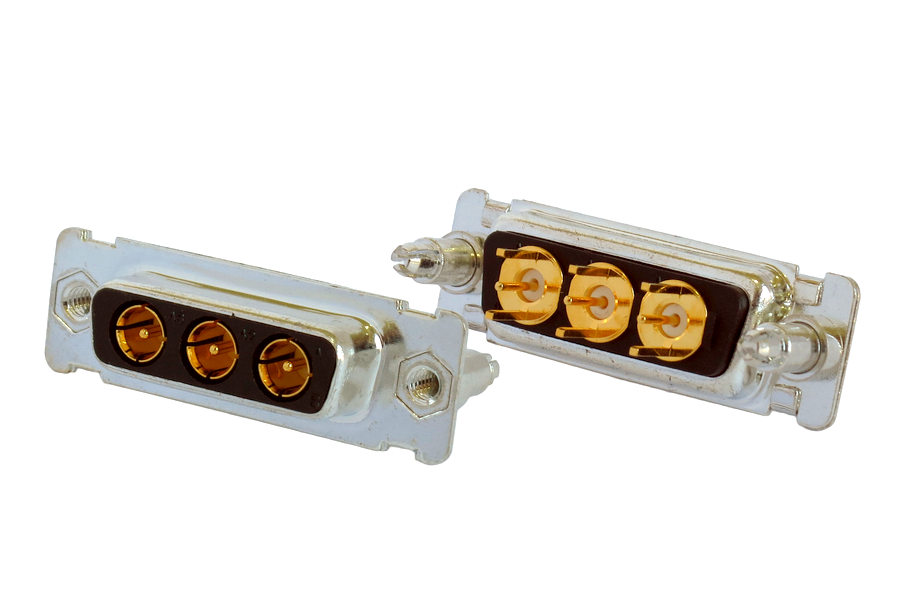

Straight PCB solder

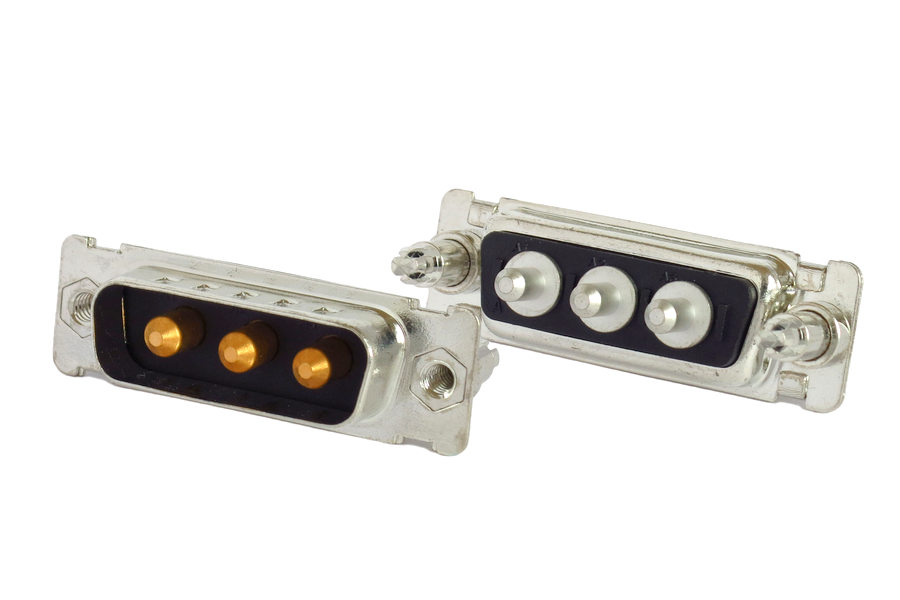

Male (click to enlarge)

Female (click to enlarge)

Drawing

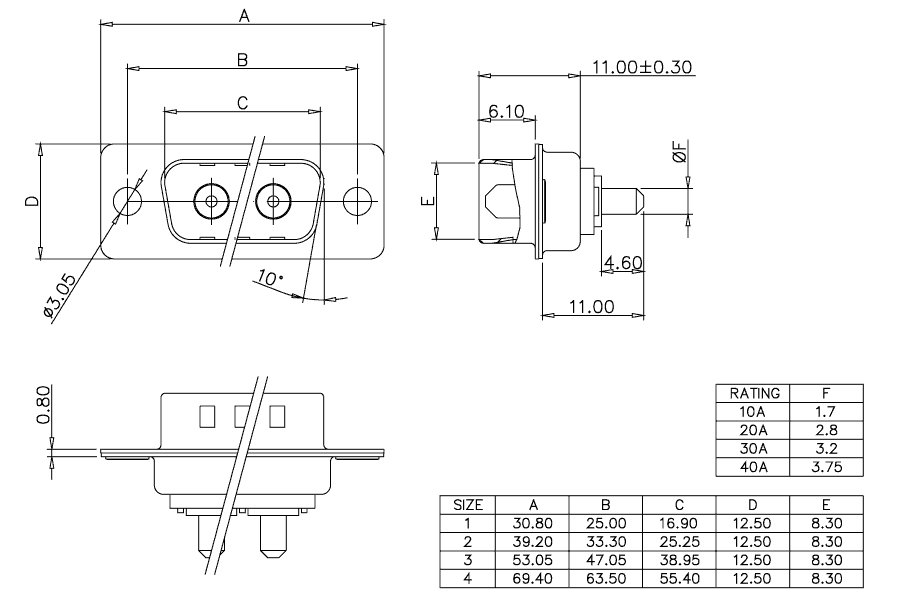

Male (click to enlarge)

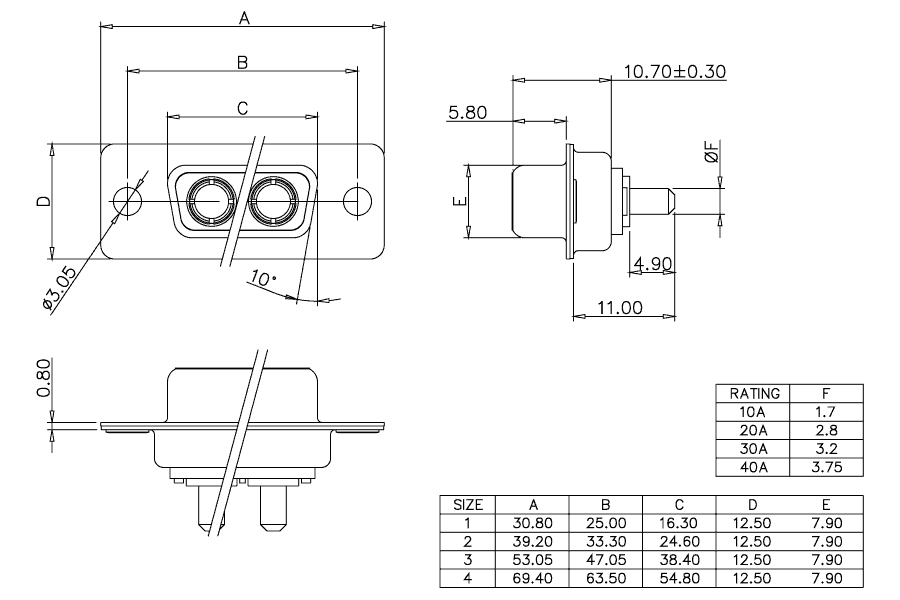

Female (click to enlarge)

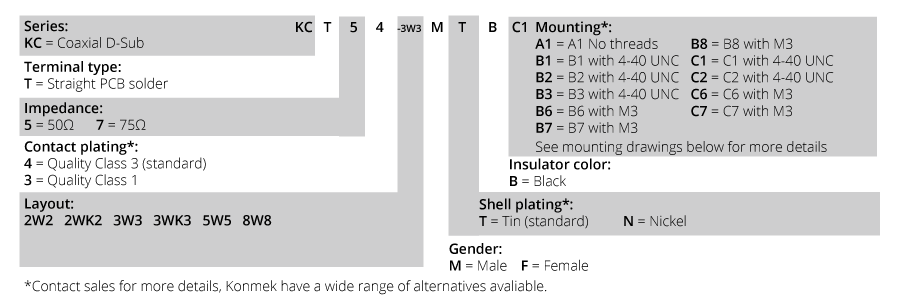

Part Number Code

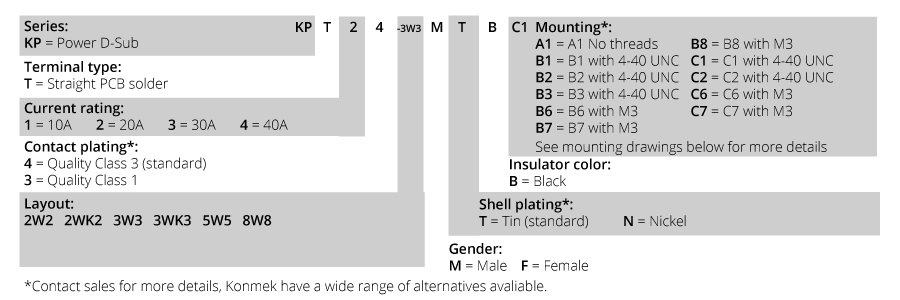

Part Number Code (click to enlarge)

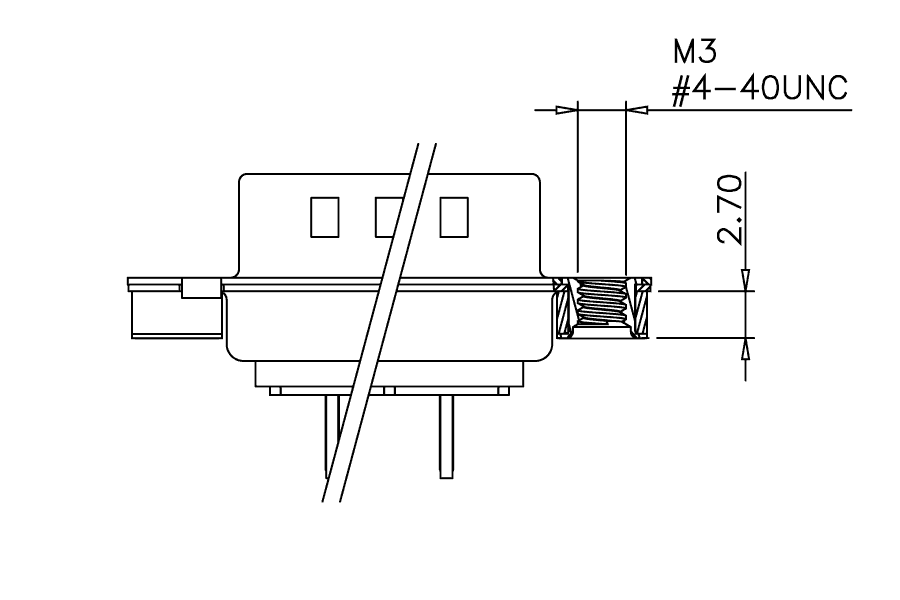

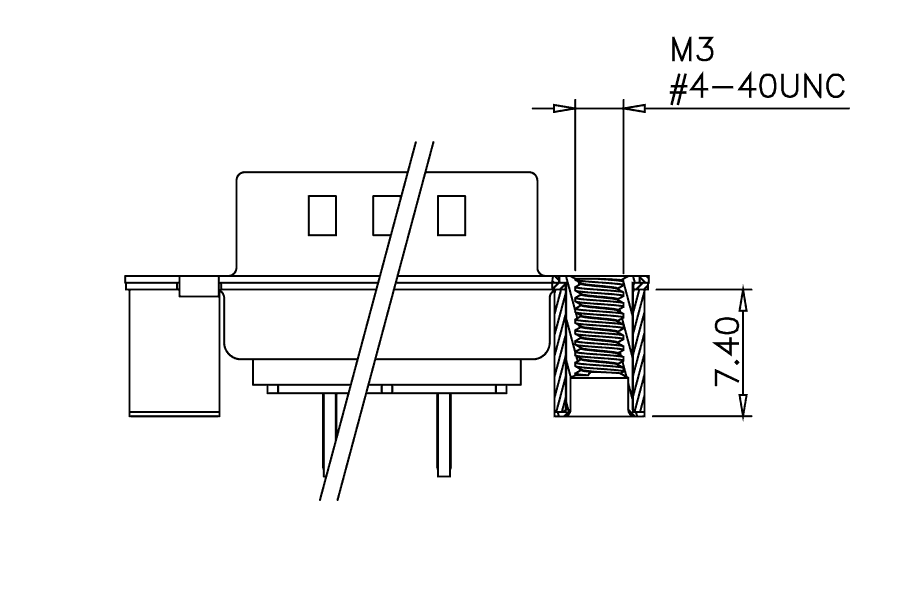

Mounting

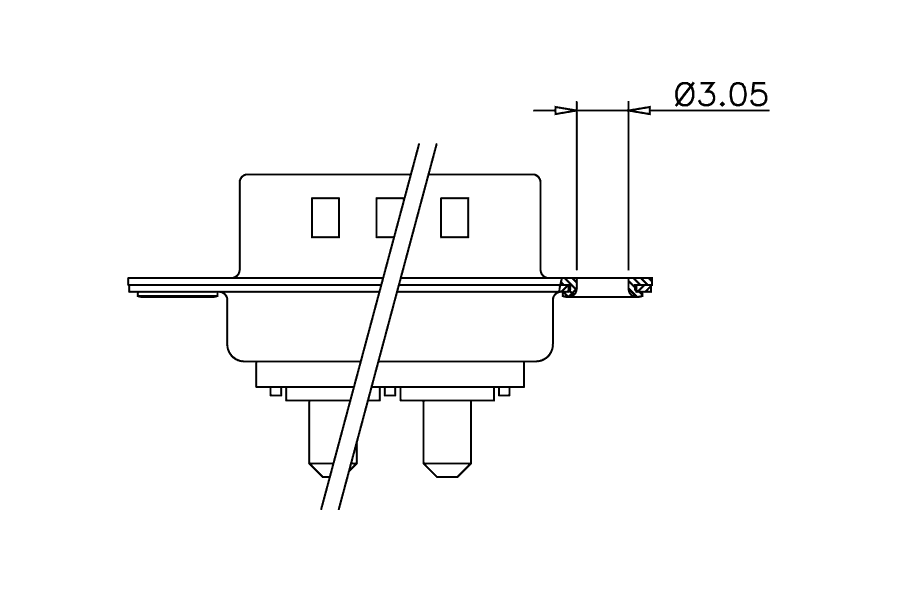

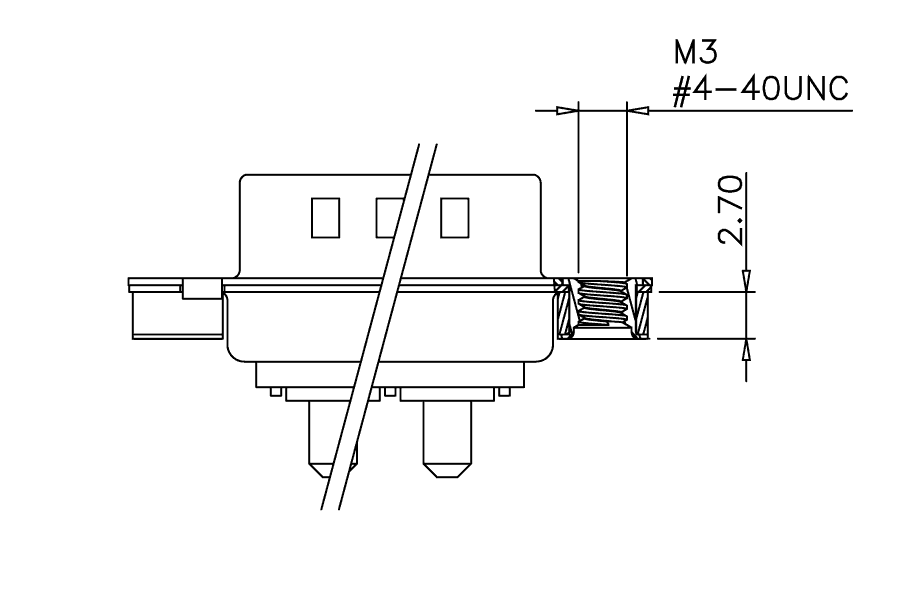

A1 (click to enlarge)

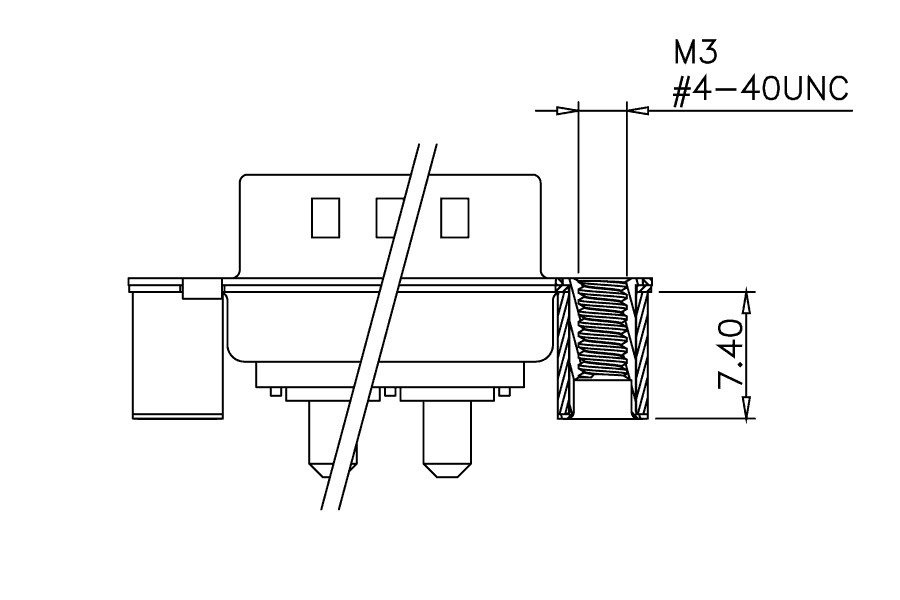

B1/B6 (click to enlarge)

B2/B7 (click to enlarge)

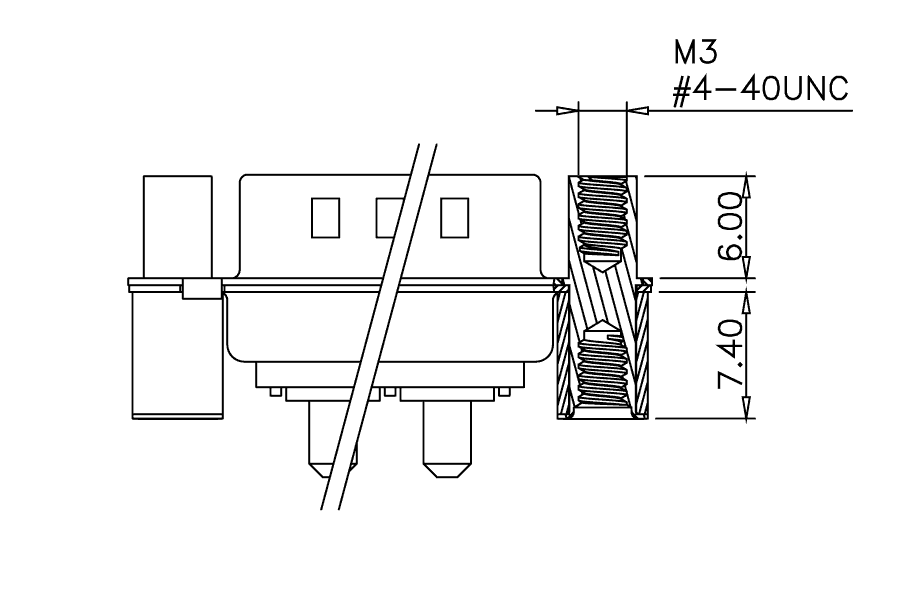

B3/B8 (click to enlarge)

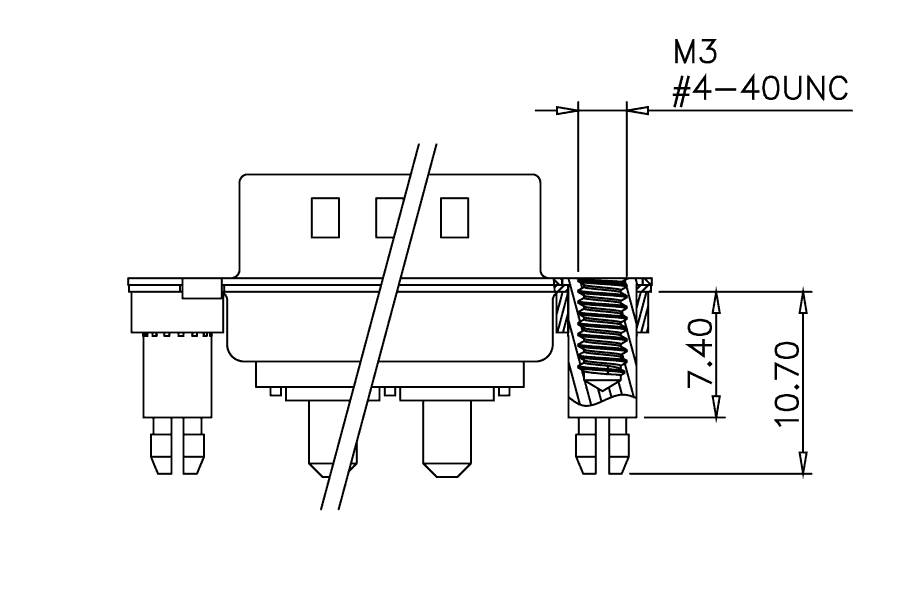

C1/C6 (click to enlarge)

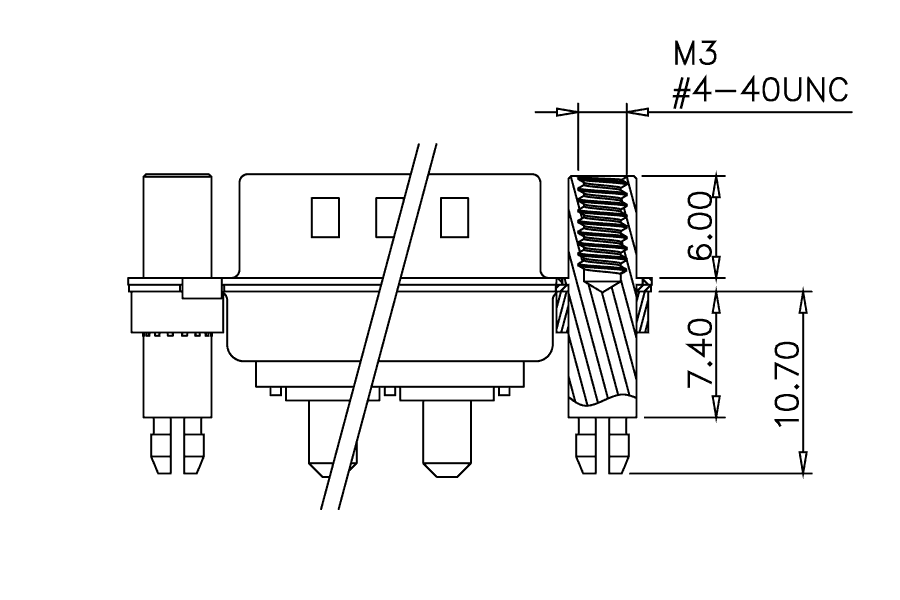

C2/C7 (click to enlarge)

PCB Layout

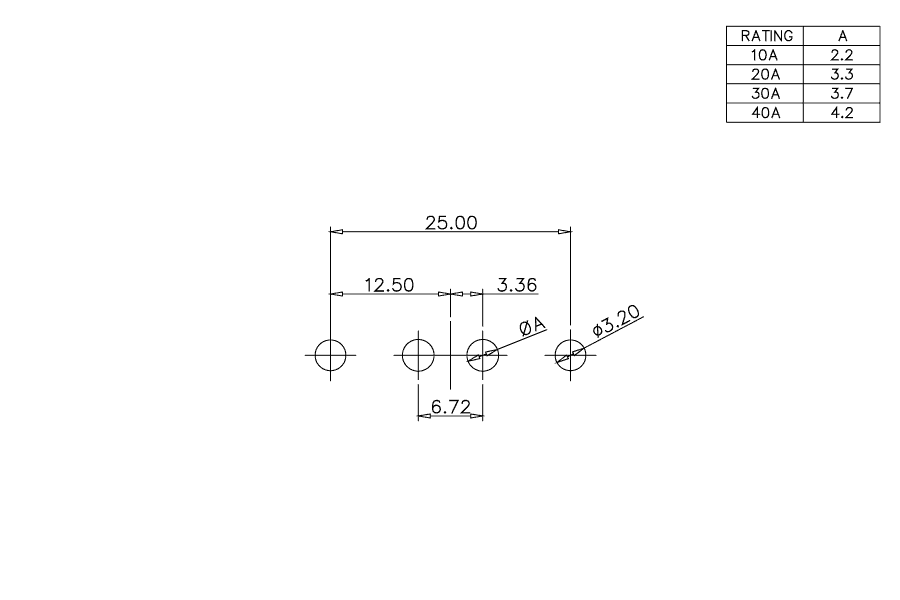

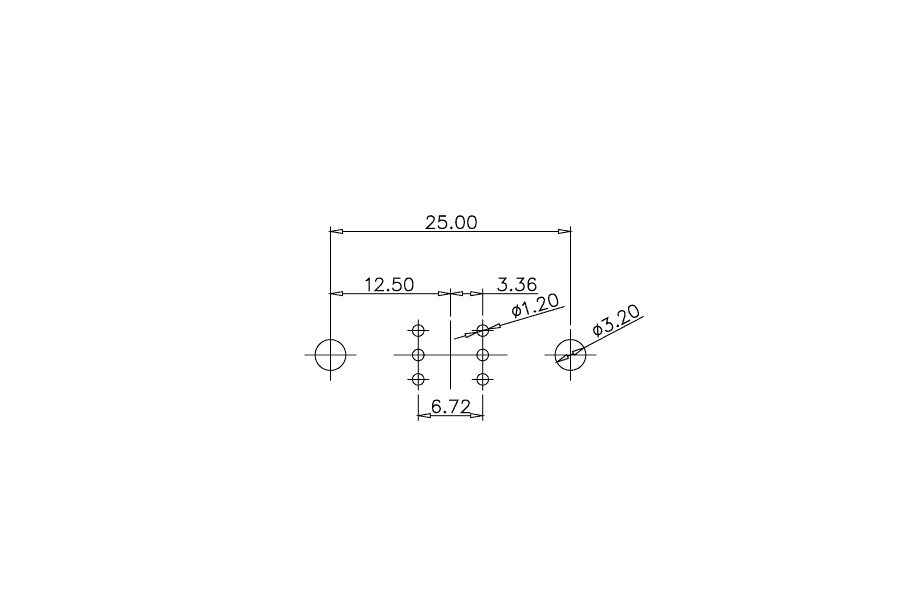

2W2/2WK2 (click to enlarge)

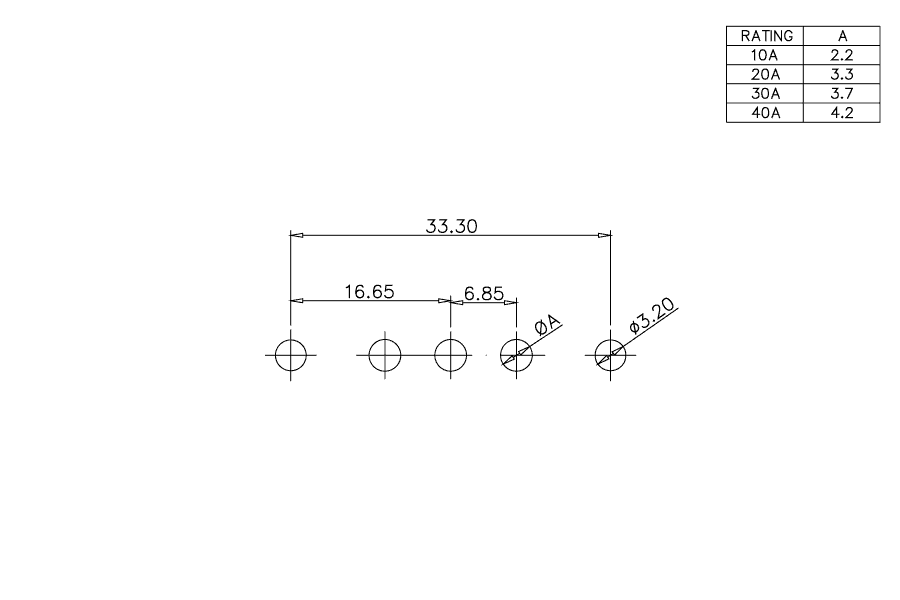

3W3/3WK3 (click to enlarge)

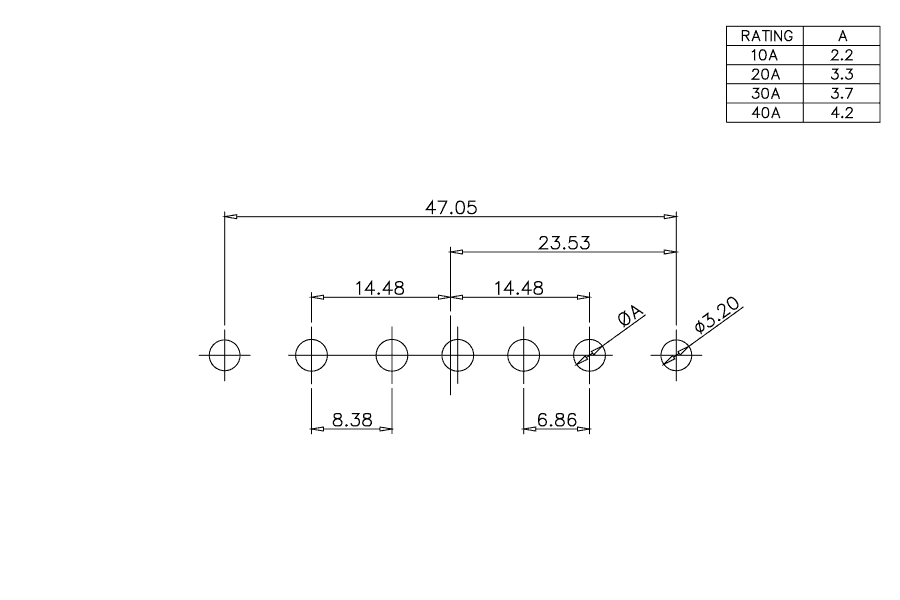

5W5 (click to enlarge)

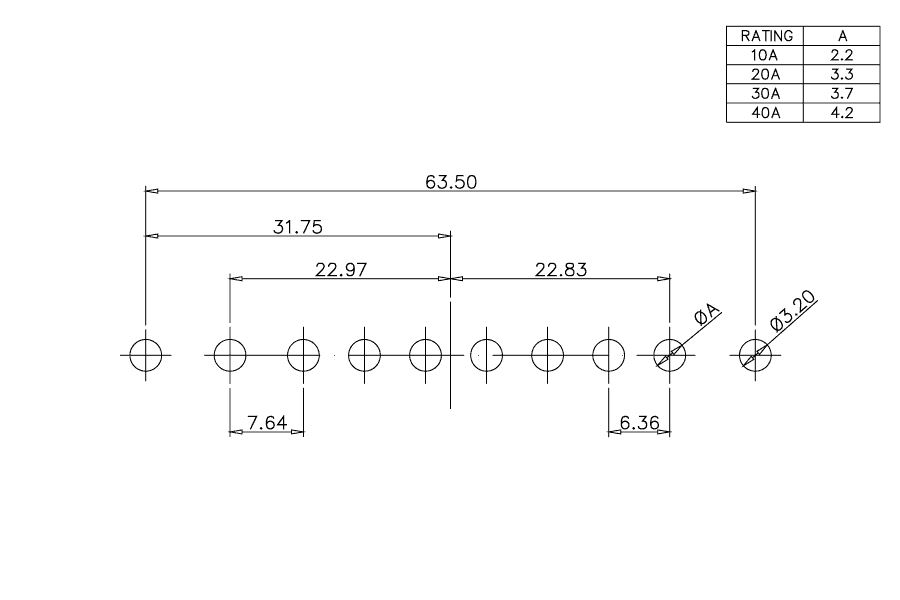

8W8 (click to enlarge)
